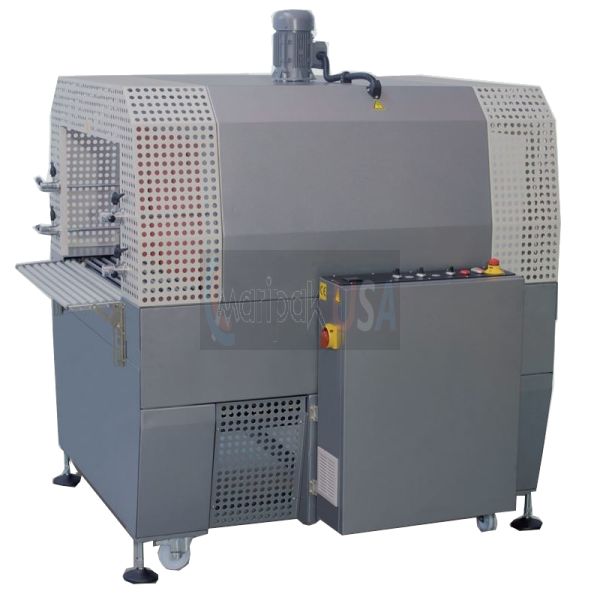

MIDI TUNNEL SERIES - T-45 - HEAT SHRINK TUNNEL - MODEL # T45
Maripak’s entry into their standard small size line of tunnels are designed for fully-automatic superior shrink performance applications where small size, consistent and constant heat levels are prime considerations for users. Built to the same exact high standards as all of their higher-end equipment, these versatile units are capable of shrinking many pieces. System estimates depend on sealer speeds, product size, and film type when combined with the proper sealer and infeed.
The MIDI Series T-45 is easy to use and rugged enough for constant and consistent operation on a daily basis while taking up minimal space.
They come standard with premium features not available on most competitive models in this price range including embedded heat chamber, easy operation controls, touchscreen library to easily recall package setups, and a double-layer isolation room.
The Maripak’s exclusive Hands-on Design makes these units the most user-friendly and energy-efficient tunnel on the market today. World-Wide approved brands for all mechanical and electrical components make the MIDI SERIES T-45 as popular with maintenance staffs as with operators.
When your application calls for an automatic and superior film shrink performance tunnel capable of fully-automatic operation, Maripak’s MINI Series offers the lowest total-cost-in-operation available today with the most advanced and evolved technologies.
All PARTS are stocked and available for immediate shipment. All technical support, service, and machine and equipment parts are fully supported by our dedicated technical Service Support and Parts fulfillment location in the Greater Tampa FL area.
* Additional MINI Series models are available for various size products, see our other models as well in this MIDI Tunnel Series.
Series: T45 - 900 - Single Chamber
Installed Power: 220-240 V - 3 Phase
Consumption (Max / Average): 12 kW / 7 kW
Compressed Air Supply: No - No air required -
Tunnel Door Height (D): 10" - (250mm)
Conveyor Belt Width (E): 18" - (450mm)
Mobility: Yes - Casters with brake
Working Height (H1): 34" - (860mm)
Color: Customized - Mixed Gray RAL7015 + RAL7010
Dimensions (GxAxH): 43" x 34" x 60" - (1080 x 860 x 1525mm)
Palletized Size (GxAxH) :49 x 40 x 66" - (1245 x 1020 x 1677mm)
Weight (Net / Gross): 298 lbs / 344 lbs - (135 kg / 156 kg)
* For DIN A4 form and MIDI TUNNEL Series real working speed depends on the product dimensions and film type.
Compact sleek new " PRO " design
Easy to integrate due to casters with brakes into any production line directly
Full automation with inline conveyor
Adds to a non-stop packaging operation for faster production speeds
Built for reduced energy consumption in mind
Easy to use, compatible with health and safety standards for operator safety
Flexibility for automatic and semi-automatic packaging lines
POF, PE, PVC films tested and approved for applications as needed
Reduced energy consumption by double-layered isolation room design
Series is a special designed top circulated airflow heat system
Top embedded heat chamber and fan system for non-operator access
Perfect dissipated heat inside via adjustable flaps and channels
Conveying speed control to optimize heat treatment duration to package
Automatic cool down to 165 degrees F / 70 degree C before switch off
Additional emergency temperature control system against fire risk
PID controlled accurate heat adjustment for easy operation
Circulation fan speed control to optimize airflow rate per application
Additional air circulation control by side flap handles
User-friendly color touch screen operation control panel
Easy to integrate with all types of packaging machines directly
This tunnel may have a lead-time associated with it. One of our machine agents will advise based on the specific model #, options, and or customization of your machine. A specific lead-time will be provided at that time.
" Add to Quote " for a personalized e-quote.
The Maripak Midi Series - Heat Tunnels are a must-have quality built heat shrink tunnel system.. Maripak’s entry into their standard small size line of heat tunnels are designed for fully-automatic superior film shrink performance where consistent and constant heat levels are prime considerations.
Built to the same exacting high standards as all of their higher-end wrappers and equipment, these versatile tunnels are heavy-duty units that run with precision and temperature accuracy capable of shrinking many pieces. The Midi Series is a top circulated airflow system.
System estimates depend on sealer speeds, product size, and film typewhen combined with the proper Maripak sealing equipment and infeed.
The Midi Series Heat Tunnel T-45 is easy to use and rugged enough for constant and consistent operation where extreme control and accurate film shrink is a must.
Pricing shown below is for a standard base model with no options. Stocked Inventory Equipment Prices may be higher and vary based on the added options / upgrades in each unit. See below for specific specification details and information. Configure and build your own machine with options by request.
This model is typically in stock ready to ship.
Request a quote by the "Get A Quote" button along with adding any options, customization's and specific comments needed. A budgetary e-quote
This machine ships direct from the Greater Tampa Florida area and will be PLUS FREIGHT. Freight will be quoted and depend on the delivery zip code.
*** Special Custom Creating will be made to ensure the safe and secure shipment of the machine and will be added to the final cost of the machine as each machine's crating is different. ***
