The Maripak Mini Series - Heat Tunnels are a must-have quality built heat shrink tunnel system.. Maripak’s entry into their standard small size line of heat tunnels are designed for fully-automatic superior film shrink performance where consistent and constant heat levels are prime considerations.
Built to the same exacting high standards as all of their higher-end wrappers and equipment, these versatile tunnels are heavy-duty units that run with precision and temperature accuracy capable of shrinking many pieces. The Mini Series is a top circulated airflow system.
System estimates depend on sealer speeds, product size, and film typewhen combined with the proper Maripak sealing equipment and infeed.
The Mini Series Heat Tunnel T-45 is easy to use and rugged enough for constant and consistent operation where extreme control and accurate film shrink is a must.
Pricing shown below is for a standard base model with no options. Stocked Inventory Equipment Prices may be higher and vary based on the added options / upgrades in each unit. See below for specific specification details and information. Configure and build your own machine with options by request.
Availability:In stock
SKU
47257
Custom notifications:
This model is typically in stock ready to ship.Request a quote by the "Get A Quote" button along with adding any options, customization's and specific comments needed. A budgetary e-quote
If out of stock, unit can be back-ordered to fill any orders. Unit will be built to order with a lead-time TBD.

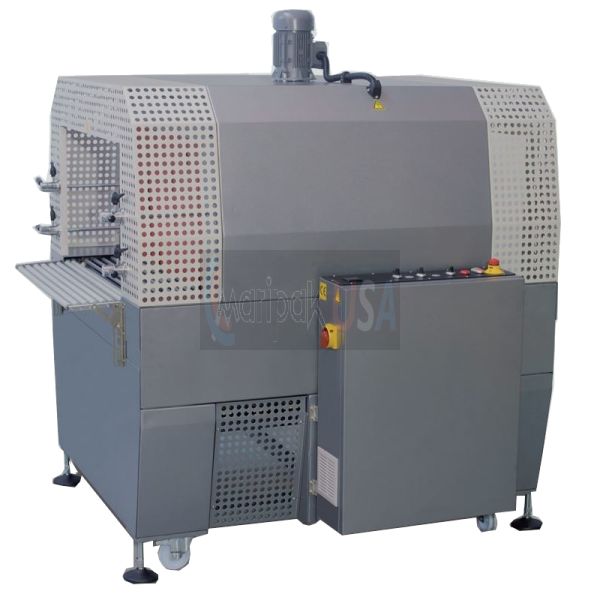

MINI TUNNEL SERIES - T-45 - HEAT SHRINK TUNNEL - MODEL # T45
Maripak’s entry into their standard small size line of tunnels are designed for fully-automatic superior shrink performance applications where small size, consistent and constant heat levels are prime considerations for users. Built to the same exact high standards as all of their higher-end equipment, these versatile units are capable of shrinking many pieces. System estimates depend on sealer speeds, product size, and film type when combined with the proper sealer and infeed.
The MINI Series T-45 is easy to use and rugged enough for constant and consistent operation on a daily basis while taking up minimal space.
They come standard with premium features not available on most competitive models in this price range including embedded heat chamber, easy operation controls, touchscreen library to easily recall package setups, and a double-layer isolation room.
The Maripak’s exclusive Hands-on Design makes these units the most user-friendly and energy-efficient tunnel on the market today. World-Wide approved brands for all mechanical and electrical components make the MINI SERIES T-45 as popular with maintenance staffs as with operators.
When your application calls for an automatic and superior film shrink performance tunnel capable of fully-automatic operation, Maripak’s MINI Series offers the lowest total-cost-in-operation available today with the most advanced and evolved technologies.
All PARTS are stocked and available for immediate shipment. All technical support, service, and machine and equipment parts are fully supported by our dedicated technical Service Support and Parts fulfillment location in the Greater Tampa FL area.
* Additional MINI Series models are available for various size products, see our other models as well in this MINI Tunnel Series.
Technical Specifications
Series: T45 - 600 - Single Chamber
Installed Power: 220V 45 Ampere 1 Phase
Consumption (Max / Average): 10 kW / 6 kW
Compressed Air Supply: No - No air required -
Tunnel Door Height (D): 10" - (250mm)
Conveyor Belt Width (E): 18" - (450mm)
Mobility: Yes - Casters with brake
Working Height (H1): 31" - (800mm)
Color: Customized - Mixed Gray RAL7015 + RAL7010
Dimensions (GxAxH): 42" x 31" x 59" - (1080 x 800 x 1500mm)
Palletized Size (GxAxH) :49 x 38 x 66" - (1245 x 966 x 1677mm)
Weight (Net / Gross): 187 lbs / 225 lbs - (85 kg / 102 kg)
* For DIN A4 form and MINI TUNNEL Series real working speed depends on the product dimensions and film type.
Advantages:
Compact sleek new " PRO " design
Easy to integrate due to casters with brakes into any production line directly
Full automation with inline conveyor
Adds to a non-stop packaging operation for faster production speeds
Built for reduced energy consumption in mind
Easy to use, compatible with health and safety standards for operator safety
Features:
Flexibility for automatic and semi-automatic packaging lines
POF, PE, PVC films tested and approved for applications as needed
Reduced energy consumption by double-layered isolation room design
Series is a special designed top circulated airflow heat system
Top embedded heat chamber and fan system for non-operator access
Perfect dissipated heat inside via adjustable flaps and channels
Conveying speed control to optimize heat treatment duration to package
Automatic cool down to 165 degrees F / 70 degree C before switch off
Additional emergency temperature control system against fire risk
PID controlled accurate heat adjustment for easy operation
Circulation fan speed control to optimize airflow rate per application
Additional air circulation control by side flap handles
User-friendly color touch screen operation control panel
Easy to integrate with all types of packaging machines directly
In-feed and discharge points of the tunnels metal protection shields are applied to remove contact to high-temperature surfaces
Conveyors stop automatically during jams to avoid further problems or additional internal issues
Mechanism against high temperature or fire risk in case of conveyor and fan circulation stops, heaters are isolated immediately
Tunnel fans are protected with mesh guards for operator safety and protection
Heaters have been isolated in the closed heating chamber, and can not be reached by the operator in daily use
Optional:
Alternative conveyor types: Wire Mesh, Teflon Mesh, Plastic Mesh
Higher Chamber and frame designs are available
Ironing rolls at discharge for side smoothing of PE wrapped packages
PTFE bracelet applied conveyor rods for centering round shaped products
PE cooling fan at discharge for fast cool-down of PE wrapped packages
Exhaust gas hood can be applied if required by application
Stainless steel versions are available for wet / moist working environments
Record-able heat and speed via touch panel controller
Quality:
ISO9001 quality standards with the relevant norm's confirmation
CE certifications comply with the latest CE directives
World-wide approved brands for all mechanical and electrical components
3-year warranty for non-wearable parts against manufacturing defects or faults
Warranty extendable by 1-year increments for an additional cost
Wearable parts are not included in warranty terms
1 set of wear parts is provided along with the machine if applicable
5 year spare part availability is provided
All Maripak machines and equipment are fabricated to the highest ISO 9001 standards and requirements
Additional Information and Resources
Price:
The machine shown is a base unit with no options or custom additions. Price provided above is for Budgetary reasons only.
Options and or Custom additions can be provided upon request and a custom quote will be provided by our Sales Support Group or an authorized distributor
The Online Prices may be used for general budgetary pricing purposes only and may differ slightly and are subject to change.
Firm pricing necessary to place any order must be confirmed with a formal quotation through the normal Maripak USA - RFQ / quote process along with the proper assignment of an authorized distributor.
Product designations starting with " B "are ( Built-to-Order ) items which are already engineered machines or equipment, but built individually to order.
Videos and Additional Content:
See all the Maripak USA equipment in action in a host of different applications by visiting our
Real production applications running on ever-evolving premium industrial shrink equipment that provides ROI
Qualifications:
Qualified for Government Section 179 Tax Deduction machine or equipment purchases and financing
Machine and equipment leasing and financing options are available through Maripak USA's preferred finance partner
This tunnel may have a lead-time associated with it. One of our machine agents will advise based on the specific model #, options, and or customization of your machine. A specific lead-time will be provided at that time.
