IMPACK PRO Intermittent Side Sealer Systems
Maripak's entry line into Fully-Automatic Side Sealer Equipment
Side Sealer System
Maripak USA has been a leader in producing high-quality Side Sealer Systems with over 30 years of expertise. Our shrink-side sealer systems are manufactured for efficiency and reliability, featuring advanced functionalities like automatic length detection, precise temperature control, and high-speed operation. These are designed to handle a range of film types and package sizes for various applications, including food packaging, retail products, and industrial goods.Each piece of equipment is manufactured under ISO 9001 requirements in seven departments, from R&D to after-sales assistance. With a strong focus on safety, quality, and responsive after-sales service, we guarantee exceptional performance and customer satisfaction. Check out our range of shrink-side sealing systems to see how we can meet your packaging needs.
Discover the collection of Our Side Sealer System

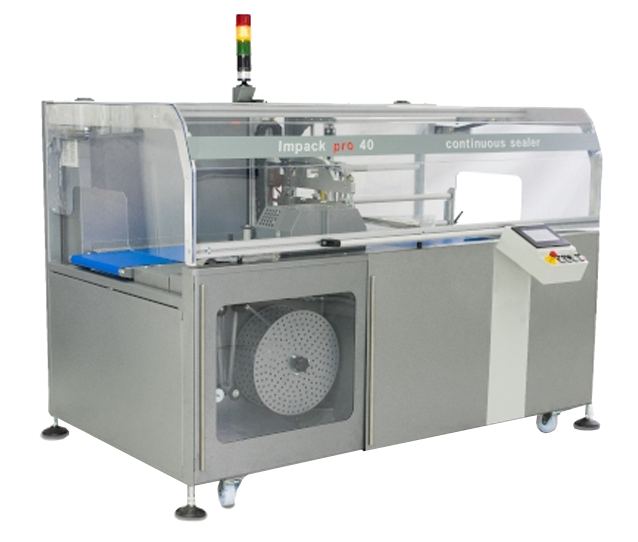

Impack Pro-Series
Our Impack Pro series features fully automatic machines known for speed, reliability, and durability. These machines are ideal for intermittent side-seal applications and come with various conveyor belt widths: 9" (Impack Pro 20), 16" (Impack Pro 40), 24" (Impack Pro 60), 31" (Impack Pro 80), and 39" (Impack Pro 100).
Each machine includes a 10-inch seal bar opening, a conveyor speed of up to 98 feet per minute, and a cycle rate of up to 60 cycles per minute. It handles film types like POF and PP, with thicknesses from 7 to 80 microns. The compact design includes customizable colors and an easy-to-use interface with recordable settings. No compressed air is needed, and the maximum film width is 26 inches.

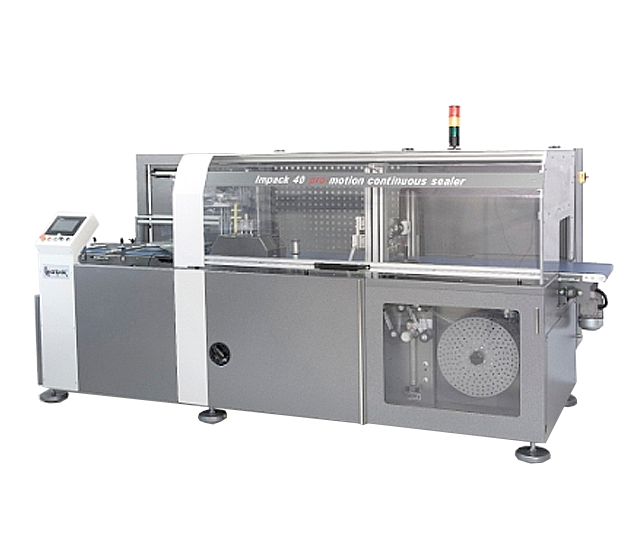

Impack Pro-Motion Series
Next is our Impack Pro-Motion series, which offers high-speed, fully automatic side sealers recognized for their rugged reliability. Depending on size and film type, they wrap at speeds up to 98 feet per minute and 110 cycles per minute. Key features include an ergonomic touchscreen panel, automatic speed and length detection, and easy format changes. Our impack pro-motion series also includes cross and continuous sealing knives with PID-controlled heaters, automatic film drive with tension control, and photocell-controlled package positioning.
Models in Our Collection:
- Impack Pro-Motion 20
- Impack Pro-Motion 40
- Impack Pro-Motion 60
- Impack Pro-Motion 80

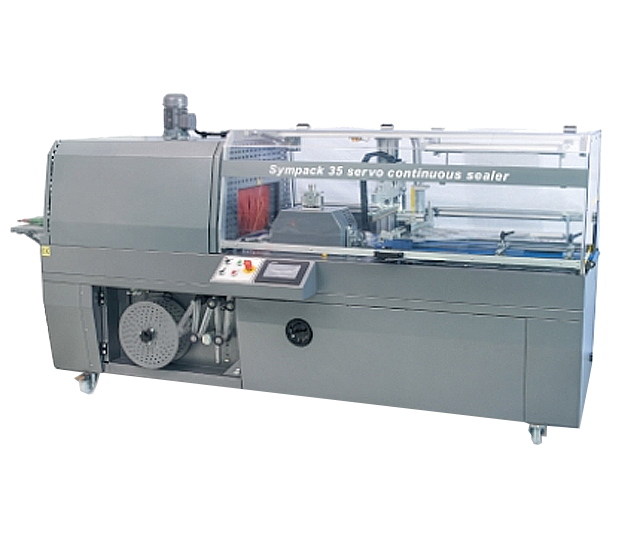

Sympack Compack
The sympack 35 from the Maripak USA sympack compack series is a fully automatic, continuous side sealer with a tunnel, ideal for compact spaces. It supports packages up to 13" x 20" x 7" with an 8-inch seal bar height for taller items. Features include a conveyor speed of 98 feet per minute, automatic length detection with encoder, an automatic post-cooling mechanism cooling to 158°F (70°C), emergency temperature control, real-time throughput counter, strong needle-wheel frame for air discharge, and reduced energy consumption with a diamond design for improved aesthetics.

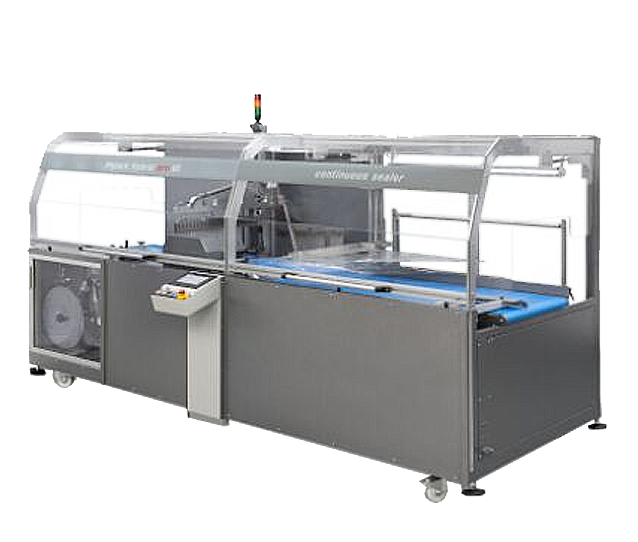

Impack Hybrid
With a 16-inch seal bar height, our impack hybrid 60 is perfect for high-speed packaging of taller products. It wraps up to 40 packs per minute with a maximum conveyor speed of 98 feet per minute. The machine runs on 400V with a 7 kW power consumption and features a servo-driven system, automatic length detection, and tension-controlled film drive. It supports POF, PP, and PE films and has a compact design with adjustable sealing pressure and customizable settings for easy integration into any production line.

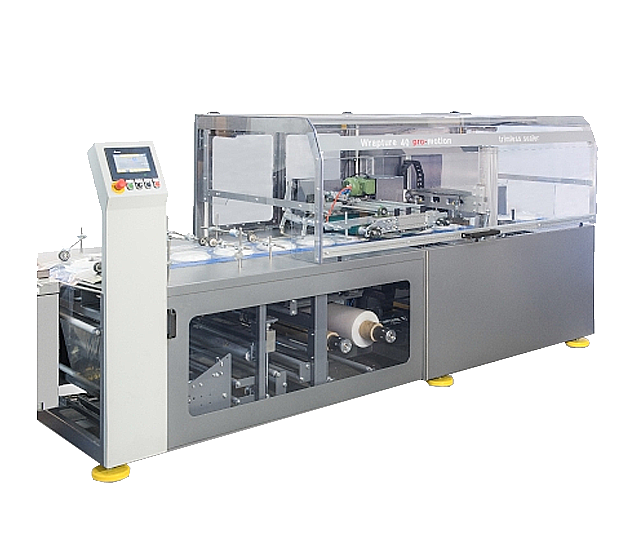

Wrapture Trimless
Our Wrapture Pro-motion 40 is a fully automatic, continuous-motion, timeless top-side sealer designed for high-speed, efficient packaging. This shrink-side sealer delivers speeds up to 98 feet per minute and handles packages up to 14" wide and 6" high with unlimited length. It offers top-side sealing with no film waste, automatic speed, and length detection, a color touch screen, and efficient film transport with a pressurized top belt and tension-controlled drive. Its compact, single-chassis design saves space and energy.
Why Choose Maripak USA Side Sealer System?
Compact & Space-Saving Design
Our Impack Pro-Motion Series and Wrapture Trimless both feature a compact, single-chassis design that minimizes layout requirements. This design is perfect for facilities with limited space, allowing for easy integration into existing production lines and reducing the need for a large footprint.
Advanced User-Friendly Features
These systems feature a user-friendly touchscreen panel, automatic length detection, and adjustable package parameters, allowing operators to easily recall and alter settings.
Energy-Efficient & Cost-Saving
Our side sealers, such as our Impack Pro-Motion, control film consumption on all four sides of the package, while the Wrapture Trimless system reduces waste and consumable costs by up to 15%, offering a sustainable and economical solution.
Versatile Range of Equipment and Machines
We offer a comprehensive lineup of high-quality shrink-side sealing systems that accommodate various conveyor widths, film types, and production speeds, ensuring efficient, reliable performance as per your specific requirements. Plus, we also provide specialized options such as the Shrink Bundler, which offers fast, consistent bundling with minimal film waste, and the Semi-Automatic L-Sealer Machine, known for its ease of use and versatility in handling different package sizes and types.
Adherence to High Standards
We adhere to the highest European standards and hold CE certification. Our products meet rigorous safety and quality requirements supported by ISO 9001 standards. We also offer a 3-year warranty on non-wearable parts, with an option to extend and ensure the availability of spare parts for five years.
Comprehensive Support Services
We provide detailed instructional videos, parts support, and virtual installation scheduling. For any technical or equipment-related inquiries, our support team is readily available to assist.
Get the best shrink-side sealers from Maripak USA for your bulk packaging needs in no time. Request a quote or add your preferred machine to the cart today!
FAQ
Q1: What types of side sealers does Maripak USA offer?
We offer a wide range of side sealers, including intermittent sealers, continuous motion sealers, and timeless top side sealers, to meet various packaging needs.
Q2: What is the Impack Pro Series?
It consists of fully automatic side sealers designed for high-speed and dependable operation, ideal for constant and reliable packaging.
Q3: What distinguishes the Impack Pro-Motion Series?
The Impack Pro-Motion Series is distinguished by its continuous motion sealers, which offer uninterrupted packaging with efficiency and consistency.
Q4: What is unique about the Sympack Compack Series?
It is notable for its compact and space-efficient design, with solid performance despite its smaller footprint.
Q5: How does the Wrapture Trimless Series minimize waste?
By employing a trimless top sealing system that eliminates film waste, the wrapture trimless series ensures a cleaner and more efficient packaging process.
Q6: Where can I find technical support for Maripak USA side sealers?
For technical support, call us at 941-229-1067 or email [email protected]. You can also visit our technical support department at 7035 Schantz Rd., Suite 100, Allentown, PA 18106. They will assist with questions, troubleshooting, and any technical inquiries related to our side sealers.
Q7: How can I order parts for Maripak USA equipment?
To order parts, complete the parts ordering and support request form with your company details, equipment model, and serial number, and specify the required parts. Submit the form, ensuring to verify your email address if prompted. For urgent needs, indicate this on the form.
Q8: What services does Maripak USA offer?
We provide comprehensive installation, setup, and training services for our equipment to ensure optimal performance and user proficiency.
Q9: Where is Maripak USA located?
Our main office and warehouse are situated at 7035 Schantz Rd., Suite 100, Allentown, PA 18106, in Eastern Pennsylvania. Additionally, our parts and service fulfillment operations are based in the Greater Tampa, Florida, area.
