Multimac D Series

PE Sealer - Multimac "D" 60

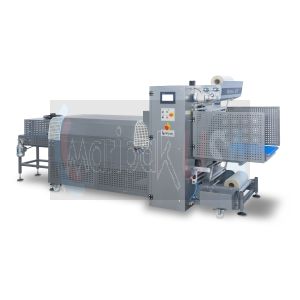

The Maripak - MULTIMAC "D" Series - Fully-Automatic - PE Sealer is a must have quality built machine. Maripak’s entry into the PE sealer and bundler arena are designed for fully-automatic sealing applications where medium to high speed and rugged reliability are prime considerations.

Built to the same exacting high standards as all of their higher end wrappers, these versatile units are heavy duty units that run with percision while being capable of wrapping many pieces.

System estimates are approx 20 cycles/minute and higher in the servo version depending on size and film type when combined with the proper infeed. .

The MULTIMAC "D" 60 is easy to use and rugged enough for constant and consistent operation when extremely fast and accurate product packaging is a must.

See below for specific specification details and information. Configure and build your own machine with options by request.

Learn More

View Details

was $48,995.00 Special Price $44,650.00
PE Sealer - Multimac "D" 80

The Maripak - MULTIMAC "D" Series - Fully-Automatic - PE Sealer is a must have quality built machine. Maripak’s entry into the PE sealer and bundler arena are designed for fully-automatic sealing applications where medium to high speed and rugged reliability are prime considerations.

Built to the same exacting high standards as all of their higher end wrappers, these versatile units are heavy duty units that run with percision while being capable of wrapping many pieces.

System estimates are approx 20 cycles/minute and higher in the servo version depending on size and film type when combined with the proper infeed. .

The MULTIMAC "D" 80 is easy to use and rugged enough for constant and consistent operation when extremely fast and accurate product packaging is a must.

See below for specific specification details and information. Configure and build your own machine with options by request.

Learn More

View Details

was $54,405.00 Special Price $48,595.00
PE Sealer - Multimac "D" 100

The Maripak - MULTIMAC "D" Series - Fully-Automatic - PE Sealer is a must have quality built machine. Maripak’s entry into the PE sealer and bundler arena are designed for fully-automatic sealing applications where medium to high speed and rugged reliability are prime considerations.

Built to the same exacting high standards as all of their higher end wrappers, these versatile units are heavy duty units that run with percision while being capable of wrapping many pieces.

System estimates are approx 20 cycles/minute and higher in the servo version depending on size and film type when combined with the proper infeed. .

The MULTIMAC "D" 100 is easy to use and rugged enough for constant and consistent operation when extremely fast and accurate product packaging is a must.

See below for specific specification details and information. Configure and build your own machine with options by request.

Learn More

View Details

was $63,550.00 Special Price $59,995.00

Maripak USA introduces PE bundlers and sealers under the Multimac "D" Series for efficient packaging solutions. With the fully automatic PE sealing capability and high-speed performance of covering 20 cycles per minute, these bundlers and sealers help save time and labor costs due to their versatile nature. The quality inline wrappers are made for the purpose of providing precision, durability, consistency, and reliability. Their user-friendly design includes a combination unit to preserve energy consumption while producing non-stop packaging operations.

The PE bundler includes other technical specifications as mentioned below:

Seal bar opening measures around 16 inches (400mm).
The maximum roll diameter is around 14 inches (350mm), which can be adjusted.
Estimated height of PE sealer machines is around 38 inches (960mm).
Includes polyethylene (PE) film type with a minimum thickness of 1 mil - 3 mil and a maximum of around 30 to 80 microns.
The color of these machines is usually mixed grey, but it can also be customized.

About Multimac "D" Series - Fully-Automatic Pe Sealer

The Multimac "D" Series includes heavy-duty units with motorized inlet and discharge belt conveyors to meet the growing demands of modern packaging operations without occupying colossal space. The casters with brakes, recordable, and re-called package settings make it easy to use.

The machines in this series feature automatic length detection, color touchscreen control panel and air circulation control. Apart from this, it also includes an automatic post-cooling mechanism, making it the ideal choice for you. Apart from heat adjustment and up-to-date secure mechanical measures of CE directives, this series includes the following aspects:

Offers Flexibility

The Multimac "D" Series has the ability to utilize single-layer film.
It can easily be adjustable to various product capacity and size requirements.
The series incorporates different language options and can run with flat film.
Its sealing blade design is compatible with different thicknesses.
Includes navigation controls and warning notifications for your convenience.

Guaranteed Quality

The PE shrink bundler units offer guaranteed quality as these are manufactured under the ISO9001 guidelines.
We have the CE certifications, complying with the latest CE directives.

Sealing Feature

The hot sealing knife coated in Teflon is embedded in the top sealer
The belt-covered and heat-proof silicone bed coated in Teflon is embedded in the bottom sealer.
Includes a PID-controlled selling temperature.
There is a product clearance control under the seal bar, which also has an auto sensor.
The cross-sealing point includes a film tension-releasing mechanism.

Additional options

The MULTIMAC "D" SERIES includes standard machine flow orientation, giving you the option to change it from left to right or vice versa.
Has the ability to pressurize and stabilize unsteady products through the top-pressure cylinder
These units can control additional conveyors through inverters.
The SERVO motor enhances the position and pressure control of the vertical sealer.
Includes spare roll nest and manual film splicing unit along with the option of Ironing side-rollers of the heat tunnel.

Discover the Collection of Our Fully Automatic Shrink Bundler

We offer a wide range of fully automatic shrink bundler machines designed for reliable sealing applications. Let's have a look at our collection:

PE SEALER - MULTIMAC "D" 60

With a 27" (680mm) cross sealer length, 24" (600mm) conveyor belt width, and 24" - (600mm) film width, this machine has installed power of around 220 V - 64 Amp - 3 Phase. It is suitable for consistent operations due to its robust built with 47" x 138" x 89" dimensions, 55 x 140 x 96" palletized size, and 1896 lbs / 2425 lbs weight.

PE SEALER - MULTIMAC "D" 80

Designed for higher performance and capacity, this machine includes a 33" cross sealer length, 31" conveyor belt width, and 31" film width along with 220V-80 Amp installed power. The 55" x 138" x 89" dimensions, 63 x 140 x 96" palletized size, and 2205 lbs / 2535 lbs weight PE sealer machine works towards offering efficiency.

PE SEALER - MULTIMAC "D" 100

The 41" cross sealer length, 39" conveyor belt width, 220 V - 96 Amp - 3 Phase installed power, and 39" film width ensures reliability and proper precision. The 63" x 138" x 89" dimensions, 71 x 140 x 96" palletized size, and 2601 lbs / 2976 lbs weight contributes to medium to high speed for carrying out continuous packaging operations.

Why Choose Maripak Automatic PE Sealer?

Top-Tier Brand integration

Maripak integrates top-tier, world-approved brands for all the technical and mechanical components for maximum durability. We aim to deliver robust machines by partnering with trustworthy manufacturers for peak functionality.

Virtual Support/Installation for a Quick Setup

Maripak USA ensures easy installation of PE sealer units, which is why every machine comes with an installation instruction and additional virtual support. You can take virtual assistance by mentioning the details of your machines in the virtual installation and training scheduling form.

Warranty

We Offer a 3-year warranty against any manufacturing defects for non-wearable parts. With us, this warranty can be extended by 1 year increment for additional cost.

Part and Equipment support

Our professional team is always on standby to assist in case you need any help with the machine parts or equipment. We prioritize 100% customer satisfaction, which is why we offer a comprehensive selection of machines for better and faster packaging.

Industry Leading Experience

With over three decades, Maripak has gained the required industry-leading experience in manufacturing shrink packaging equipment. Our machines are time-tested and have recorded proven results in a variety of packaging applications.

Along with PE sealer machines, Maripak also offers a heat shrink tunnel machine, shrink film heat tunnel and auto shrink wrap machine for carrying out your packaging operations. However, if you have any queries, please contact us at 877-466-2171 or email us at [email protected].

FAQ

Q1: What are the key features of the MULTIMAC "D" Series PE Sealers?

The key features of the MULTIMAC "D" Series PE Sealers include fully automatic inline sealing operations with high speed and performance.

Q2: How user-friendly are the MULTIMAC "D" Series PE Sealers for operation?

The MULTIMAC "D" Series PE Sealers include intuitive interfaces and controls along with other safety measures, making them exceptionally user-friendly.

Q3: Can customers request custom configurations for their MULTIMAC "D" Series PE Sealers?

Yes, the customers request custom configurations for their MULTIMAC "D" Series PE Sealers.

Q4: What sets Maripak's MULTIMAC "D" Series PE Sealers apart from other sealers on the market?

The rugged reliability, user-friendly design, and versatility of these units, along with other aspects, sets Maripak's MULTIMAC "D" Series PE Sealers apart from other sealers on the market.

Q5: Are there different models available within the MULTIMAC "D" Series PE Sealers range?

Indeed, there are different models available within the MULTIMAC "D" Series PE Sealers range.

Q5: Do the MULTIMAC "D" Series PE Sealers have any additional options?

The MULTIMAC "D" Series PE Sealers do have additional options.

MULTIMAC D Series of Automatic Inline Wrappers
