The Maripak - MULTIMAC "D" Series - Fully-Automatic - PE Sealer is a must have quality built machine. Maripak’s entry into the PE sealer and bundler arena are designed for fully-automatic sealing applications where medium to high speed and rugged reliability are prime considerations.
Built to the same exacting high standards as all of their higher end wrappers, these versatile units are heavy duty units that run with percision while being capable of wrapping many pieces.
System estimates are approx 20 cycles/minute and higher in the servo version depending on size and film typewhen combined with the proper infeed. .
The MULTIMAC "D" 80 is easy to use and rugged enough for constant and consistent operation when extremely fast and accurate product packaging is a must.
See below for specific specification details and information. Configure and build your own machine with options by request.
Availability:In stock
SKU
47004
Custom notifications:
This model is built to order... Materials are in stock to manufacturer and build this machine. Please use the "Get A Quote" button for an instant personalized e-quote.

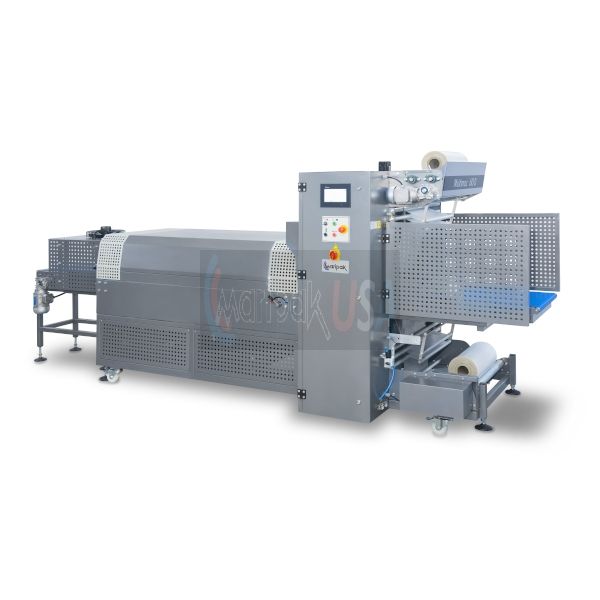

MULTIMAC "D" 80 - AUTOMATIC - PE SEALER - MODEL # MMACD80
Maripak’s entry into the inline PE sealers arena are designed for fully-automatic PE sealing applications where higher speeds and rugged reliability are prime considerations in a medium to large sized user. Built to the same exacting high standards as all of their higher end wrappers, these versatile units are capable of wrapping many pieces. System estimates are 20 cycles/minute and higer in the servo version depending on size and film typewhen combined with the proper infeed.
The MULTIMAC "D" 80 is easy to use and rugged enough for constant and consistent operation on a daily basis while taking up minimal space.
They come standard with premium features not available on most competitive models in this price range including low-mount film cradle, easy operation controls, touchscreen library to easily recall package setups, and automatic dwell time compensator.
The Maripak’s exclusive Hands on Design make these units the most user-friendly side sealer packaging unit on the market today. World-Wide approved brands for all mechanical and electrical components make the MULTIMAC "D" 80 as popular with maintenance staffs as with operators.
When your application calls for an automatic PE sealer wrapper capable of fully-automatic operation, Maripak’s MULTIMAC "D" Series offers the lowest total-cost-in-operation available today with the most advanced and evolved technologies.
All PARTS are stocked and available for immediate shipment. All technical support, service, and machine and equipment parts are fully supported by our dedicated technical Service Support and Parts fulfillment location in the Greater Tampa FL area.
* Additional MULTIMAC "D" Series models are available for various size products, see our other models as well in this MULTIMAC "D" Equipment Series.
Technical Specifications
Seal Bar Opening: 16" - (400mm)
Maximum Conv. Speed: 65 ft / minute - (20 mt / minute) - option to be adjustable
Maximum Cycles: 20 cycles / minute - - ( 35 cycles / minute - in servo version)
Maximum Roll Diameter: 14" - (350mm) - adjustable
Working Height: 38" - (960mm)
Compressed Air Supply: Yes - air required - 6 bar
Film Types: PE- Polyethylene
Film Thickness (min / max): 1 mil - 3 mil / 30 to 80 micron
Color: Customized - Mixed Gray RAL7015 + RAL7010
Cross Sealer Length: 33" - (840mm)
Conveyor Belt Width: 31" - (800mm)
Maximum Film Width: 31" - (800mm)
Installed Power: 220 V - 80 Amp - 3 Phase ** 480 V - 3 Phase Option for MTO
Consumption (Max / Average): 27 kW / 15 kW
Dimensions (AxBxC): 55" x 138" x 89" - (1400 x 3500 x 2250mm)
Palletized Size (AxBxC) :63 x 140 x 96" - (1600 x 3350 x 2450mm)
Weight (Net / Gross): 2205 lbs / 2535 lbs - (1000 kg / 1150 kg)
* For DIN A4 form and MULTIMAC "D" Series real working speed depends on the product dimensions and film type. ** Optional Power / Electrical option upgrade to 480 V - 3 Phase for an upcharge with MTO ( made to order ) equipment.
Advantages:
Compact design of PE wrapper and heat tunnel combo on a single chassis
Customized design and strengthened mechanical properties for high products
Easy to integrate due to casters with brakes into any production line directly
High speed automation with inline-motion packaging system
Non-stop packaging operation for faster production speeds
Recordable and re-callable package parameter settings
Combination unit built for reduced energy consumption
Easy to use, compatible with health and safety standards
Features:
Fully-automatic system with motorized inlet / discharge belt conveyors
Automatic encoder controlled speed and length detection by sensor synchronization
Feeding frequency control by sensor detection and PLC control
User-friendly color touch screen operation control panel
Excellent balancing of sealing blade on conjugated linear bearings
Auto PE film driving motorized rollers triggered by suspension arm
Ability to read instant or total realized capacity by counter
Adjustable speed of tunnel conveyor for optimized heat application period
Easy programmable format changes for different package sizes
Heat adjustment with digital PID control
Air circulation control by side flap handles
Automatic post cooling mechanism for cooling down to 165 degrees F / 70 degrees C before switch off
Additional emergency temperature control system against fire risk
Up-to-date safety electric and mechanical measures of CE directives
Sealing:
Teflon coated hot sealing knife embedded in visor protected top sealer
Teflon belt covered & heat-proof silicon bed embedded bottom sealer
PID controlled sealing temperature inserted by touch panel
Ability to work with a wide range of film thicknesses
Product clearance control under seal bar by auto sensor
Film tension releasing mechanism on the cross-sealing point
Flexibility:
Ability to utilize single layer film with accurate width
Easily adjustable for varying product sizes and capacity requirements
Runs with flat film which is an overall advantage
Native, various, and new added language options on adaptable touch keyboard
Memory Recipe property for prompt and package dimension adjustments
Perfect sealing blade design compatible with varying thicknesses
Warning notifications and messages for potential emergency cases
"Navigation Control" for actual throughput and estimated packs/time units
Optional:
Right To Left - Standard Machine Flow Orientation
Change of Flow Orientation - to Left To Right - Option - Add 5% Upcharge
Printed film applicability by marker detection sensor and programing
Fully controlled easy film drive mechanism for both top and bottom PE rolls
Repositioning of top and bottom PE film roll nests to waist level
Spare roll nest and manual film splicing unit
Ability to control additional conveyors by inverters
Ability to stabilize and pressurize unsteady products by top-pressure cylinder
Enhanced pressure and position control of vertical sealer by SERVO motor
Linking conveyor: Non-rigid, wavy-based or short products ( L< 6 inches / 15 cm )
Synchronized sealer and tunnel movement ( L< 23 inches / 60 cm )
Ironing side-rollers at the exit of heat tunnel
Quality:
ISO9001 quality standards with the relevant norm's confirmation
CE certifications, complies with the latest CE directives
World-wide approved brands for all mechanical and electrical components
3 year warranty for non-wearable parts against manufacturing defects or faults
Warranty extendable by 1 year increments for additional cost
Wearable parts are not included in warranty terms
1 set of wear parts is provided along with the machine
5 year spare part availability is provided
All Maripak machines and equipment are fabricated to the highest ISO 9001 standards and requirements
Additional Information and Resources
Price:
The machine shown is a base unit with no options or custom additions. Price provided above is for Budgetary reasons only.
Options and or Custom additions can be provided upon request and a custom quote will be provided by our Sales Support Group or an authorized distributor
The Online Prices may be used for general budgetary pricing purposes only and may differ slightly and are subject to change.
Firm pricing necessary to place any order must be confirmed with a formal quotation through the normal Maripak USA - RFQ / quote process along with the proper assignment of an authorized distributor.
Product designations starting with " B "are ( Built-to-Order ) items which are already engineered machines or equipment, but built individually to order.
Videos and Additional Content:
See all the Maripak USA equipment in action in a host of different applications by visiting our
Real production applications running on ever evolving premium industrial shrink equipment that provides ROI
Qualifications:
Qualified for Government Section 179 Tax Deduction machine or equipment purchases and financing
Machine and equipment leasing and financing options are available through Maripak USA's preferred finance partner
This machine will have a lead-time associated with it. One of our machine agents will advise based on the specific model #, options, and or customization of your machine. A specific lead-time will be provided at that time.
The Maripak - MULTIMAC "D" Series - Fully-Automatic - PE Sealer is a must have quality built machine. Maripak’s entry into the PE sealer and bundler arena are designed for fully-automatic sealing applications where medium to high speed and rugged reliability are prime considerations.
Built to the same exacting high standards as all of their higher end wrappers, these versatile units are heavy duty units that run with percision while being capable of wrapping many pieces.
System estimates are approx 20 cycles/minute and higher in the servo version depending on size and film typewhen combined with the proper infeed. .
The MULTIMAC "D" 80 is easy to use and rugged enough for constant and consistent operation when extremely fast and accurate product packaging is a must.
See below for specific specification details and information. Configure and build your own machine with options by request.
Custom note
This model is built to order... Materials are in stock to manufacturer and build this machine.
Please use the "Get A Quote" button for an instant personalized e-quote.
Additional Info
This machine ships direct from the Greater Tampa Florida area and will be PLUS FREIGHT. Freight will be quoted and depend on delivery zip code.
*** Special Custom Creating will be made to ensure safe and secure shipment of the machine and will be an added to the final cost of the machine as each machine's crating is different. ***
