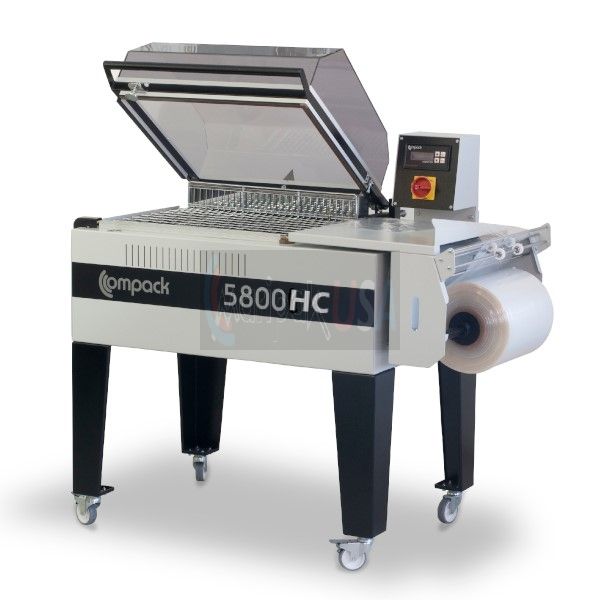

The Compack Series - Hood L-Sealer - Model - # 5800HC is a simple entry-level shrink sealing machine with a seal area of 23" x 17" and a higher-taller chamber height allowing for up to 13" high-taller products.
Maripak’s sophisticated line of hood sealers are designed for L-seal applications where small-medium volume and space are the prime considerations.
Built to the same high standards as their high-speed wrappers, these versatile units are capable of wrapping many pieces per minute when combined with the properly motivated operator.
The model 5800HC is easy to use and rugged enough for constant operation and the perfect unit for small-medium daily volumes.
See below for specific specification details and information. Configure and build your own machine with options by request.
In stock
SKU
52355
Custom notifications:
Request a quote by using the "Get A Quote" button along with adding any options, customization's and specific comments. A budgetary e-quote will be sent to you within minutes.
If out of stock, unit can be back-ordered to fill any orders. Unit will be built to order with a lead-time TBD.
COMPACK SERIES - SEMI-AUTOMATIC - HOOD SEALER - MODEL # 5800HC
Maripak’s entry line of sealers are designed for Hood L-seal applications where size and space limitations are prime considerations in a small to a medium-sized user.
These small but mighty All In One unit is built to the same exacting standards as their larger and high-speed wrappers, they provide for great portability and these versatile units are capable of wrapping many pieces per minute when combined with a properly motivated operator.
The 5800HC is easy to use and rugged enough for constant operation while taking up very little space.
They come standard with premium features not available on most competitive models in this price range including digital timers and temperature controls, wheels for mobility, magnetic hold down, and adjustable perforators for air discharge, there is the option to upgrade to a motorized discharge unit with the MC model.
The Maripak’s exclusive Hands-on Design make these units the most user-friendly Hood L sealer and shrink units on the market today. World-Wide approved brands for all mechanical and electrical components make the 5800HC as popular with maintenance staffs as with operators.
When your application calls for a Hood L-seal combination wrapper capable of manual or semi-automatic operation, Maripak’s 5800 series offers the lowest total-cost-in-operation available today.
All PARTS are stocked and available for immediate shipment. All technical support, service, and machine and equipment parts are fully supported by our dedicated technical Service Support and Parts location in the Greater Tampa FL area.
* Additional COMPACK Series models are available for various size products, see our other models as well in this COMPACK Series.
Technical Specifications
Maximum Capacity: 5 - 10 pack / min " i Series "
Maximum Capacity: 7 - 12 pack / min " MC Series "
Max. Roll Diameter: 10" standard
Working Height (E): 34" (8000-i Series 38" (970mm))
Film Types: POF: 7-37, PVC: 15-25 micron
Max. Product Height: 13" from top to bottom max
Color: Light gray RAL7035
Max. Film Width: 24"
Installed Power: 208-240V - 25 Ampere - 1-Phase
Consumption (Max. / Average): 5kW / 3kW
Chamber Sizes:23" x 17" x 16"
Dimensions (AxBxCxD):48" x 29" x 43" x 18"
Palletized Size (WxLxH) :31" x 48" x 45"
Weight (Net / Gross): 285 lbs / 375 lbs
* MG: Magnetic hold down series, ** MC: Automatic discharge series - Is Available in 5800 Series
Features:
Seal & Shrink single-step application in the same chamber
Practical and compact solution for low capacity packaging requirements
Easily transportable on wheels inside a facility
Easily read timers and temperature controls by the digital control panel
Magnetic holder keeps the chamber hood closed and secure automatically
Adjustable perforators fro air discharge during shrinkage
Intelligent Sealing System Advantages:
Sealing blade power is only generated as much as it is needed
Adaptive temperature power control during variable cycle times
Start-up power for the sealing blade is controlled with the intelligent system
Increased duration of composite blade-support due to efficient heat control
Sustainable sealing quality and process accuracy by stabilization heat control
Sealing:
Mechanical switch triggers heating of wire and chamber when the hood is closed
Sealing is actuated in between wire and silicon rubber by the manually closed hood
Teflon belt covered rubber increases sealing quality and life-span of silicon
Sealing wire is embedded into the heat-resistant composite fiber
Solid-state relays in electrical cabinet help to operate long-term and quietly
Flexibility:
Height adjustable package mesh tray for center sealing option
Adjustable power of sealing blade against different film thickness
Poly-bagging option (without shrink) by switching off the fan
Temperature, timer and other options are controlled with a digital system
Various language options are available in digital panel
Service menu is available in the digital control panel
Film roll holder with easy slide, load, and alignment for each package
Optional:
Height Chamber Change-out - Maximum Product height up to 13.5" (35cm) - Available As Is
Stainless steel versions are available for wet/moist/damp working environments - add $1950 for option
On-site & remote installation, and training service options are available for a fee depending on on-site or remote service - please inquire
Quality:
Working option without pressured air need
ISO9001 quality standards with the relevant norm's confirmation
CE certifications comply with the latest CE directive
World-wide approved brands for all mechanical and electrical components
3-year warranty for non-wearable parts against manufacturing defects or faults
Spare parts availability as needed through our Techncial Parts Department
All Maripak machines and equipment are fabricated to the highest ISO 9001 standards and requirements
Additional Information and Resources
Price:
The machine shown is a base unit with no options or custom additions. Price provided above is for Budgetary reasons only.
Options and or Custom additions can be provided upon request and a custom quote will be provided by our Sales Support Group or an authorized distributor
The Online Prices may be used for general budgetary pricing purposes only and may differ slightly and are subject to change.
Firm pricing necessary to place an order must be confirmed with a formal quotation through the normal Maripak USA - RFQ / quote process along with the proper assignment of an authorized distributor.
Product designations starting with " B "are ( Built-to-Order ) items which are already engineered machines or equipment but built individually to order.
Videos and Additional Content:
See all the Maripak USA equipment in action in a host of different applications by visiting our
Real production applications running on ever-evolving premium industrial shrink equipment that provides ROI
Qualifications:
Qualified for Government Section 179 Tax Deduction machine or equipment purchases and financing
Machine and equipment leasing and financing options are available through Maripak USA's preferred finance partner
This machine may have a lead-time associated with it. An Agent will advise based on the specific model #, options, and or customization's. A specific lead-time will be provided at that time.
The Compack Series - Hood L-Sealer - Model - # 5800HC is a simple entry-level shrink sealing machine with a seal area of 23" x 17" and a higher-taller chamber height allowing for up to 13" high-taller products.
Maripak’s sophisticated line of hood sealers are designed for L-seal applications where small-medium volume and space are the prime considerations.
Built to the same high standards as their high-speed wrappers, these versatile units are capable of wrapping many pieces per minute when combined with the properly motivated operator.
The model 5800HC is easy to use and rugged enough for constant operation and the perfect unit for small-medium daily volumes.
See below for specific specification details and information. Configure and build your own machine with options by request.
Custom note
Request a quote by using the "Get A Quote" button along with adding any options, customization's and specific comments. A budgetary e-quote will be sent to you within minutes.
Additional Info
This machine ships from the Maripak USA location in the Greater Tampa Florida Area or Eastern Pa and will bePLUS FREIGHT. Freight will be quoted and depend on delivery zip code.
*** Special Custom Creating will be made to ensure the safe and secure shipment of the machine and will be added to the final cost of the machine as each machine's crating is different. ***
