TMC Pro - L-Sealer - Model # 8065-M

TMC Pro - L-Sealer - Model # 8065-M

TMC Pro - L-Sealer - Model # 5844-M

was $15,690.00 Special Price $13,890.00



The Maripak - TMC Pro Series Semi-Automatic - L-Bar Sealer is a no let down workhorse machine. Maripak’s standard line of sealers are designed for L-seal applications where speed and rugged reliability are prime considerations.

This motorized unit's sealing bar is closed by a servo-driven motor for ease of use for any trained operator.

Built to the same exacting standards as their high-speed wrappers, these versatile units are capable of wrapping many pieces per minute when combined with the proper infeed or motivated user.

The model 5844-M is easy to use and rugged enough for constant operation. The simple motorized servo-driven operation makes this a fantastic product piece for any operation.



Check out our current inventory here... See Our Live Inventory Feed



Pricing shown below is for a standard base model with no options. Stocked Inventory Equipment Prices may be higher and vary based on the added options / upgrades in each unit.
See below for specific specification details and information. Configure and build your own machine with options by request.



Availability: In stock
SKU
42114

Custom notifications:

Stock Item - Request a quote by the "Get A Quote" button along with adding any options, customization's and specific comments needed. A budgetary e-quote will be sent to you within minutes.

If out of stock, unit can be back-ordered to fill any orders. Unit will be built to order with a lead-time TBD.

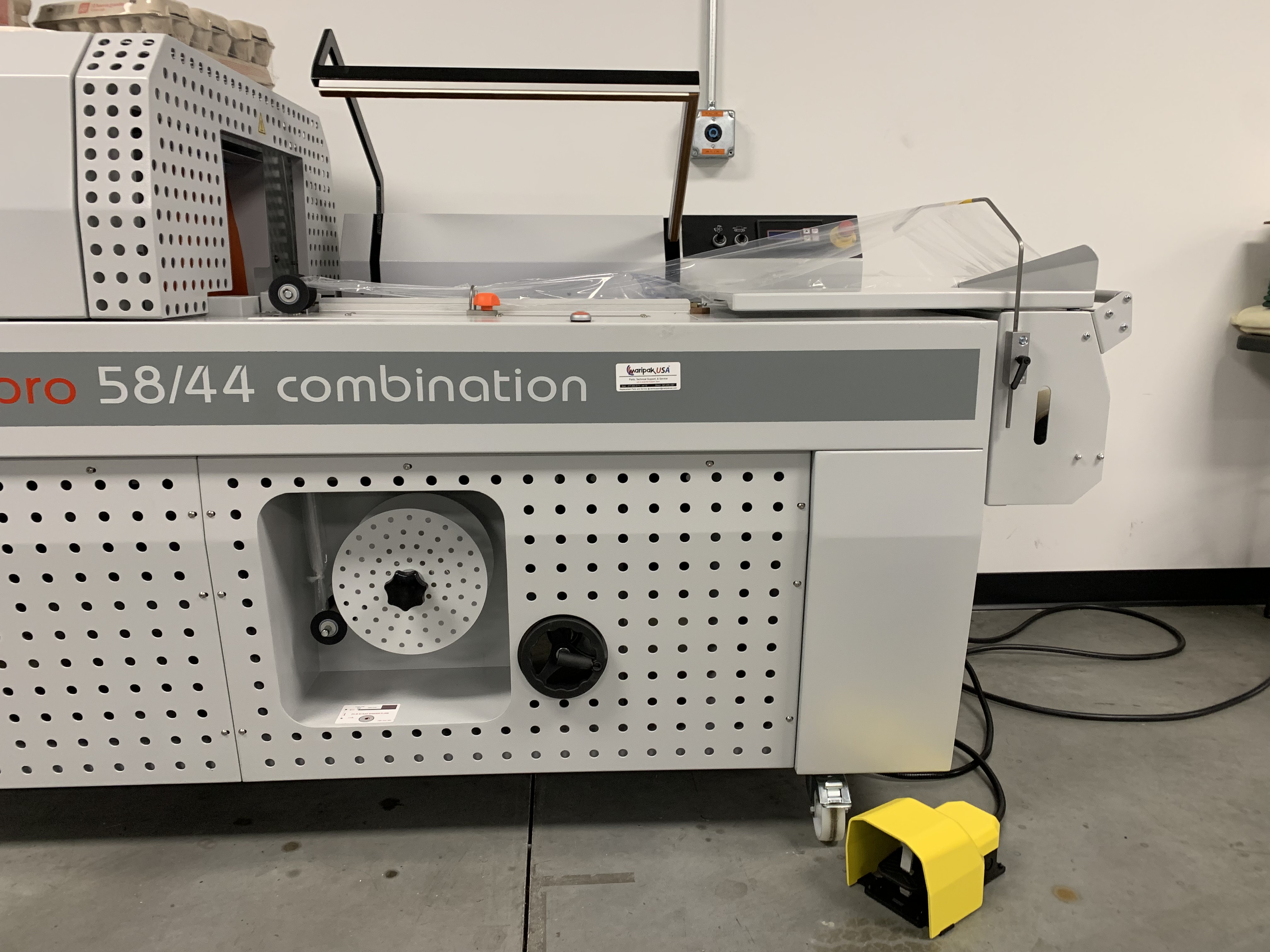

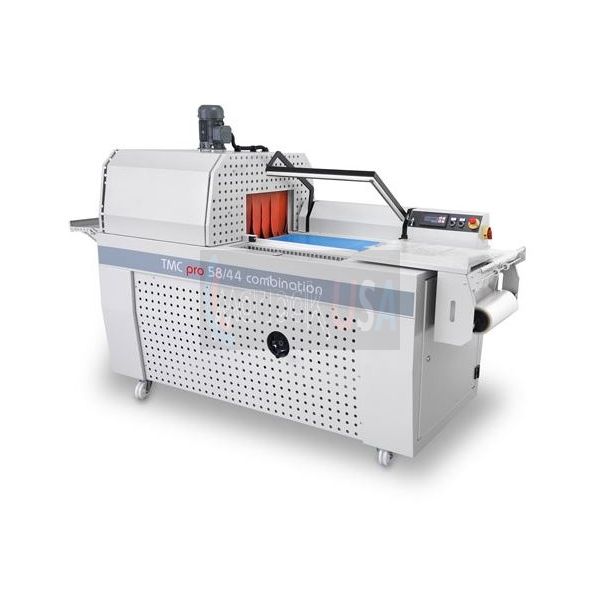

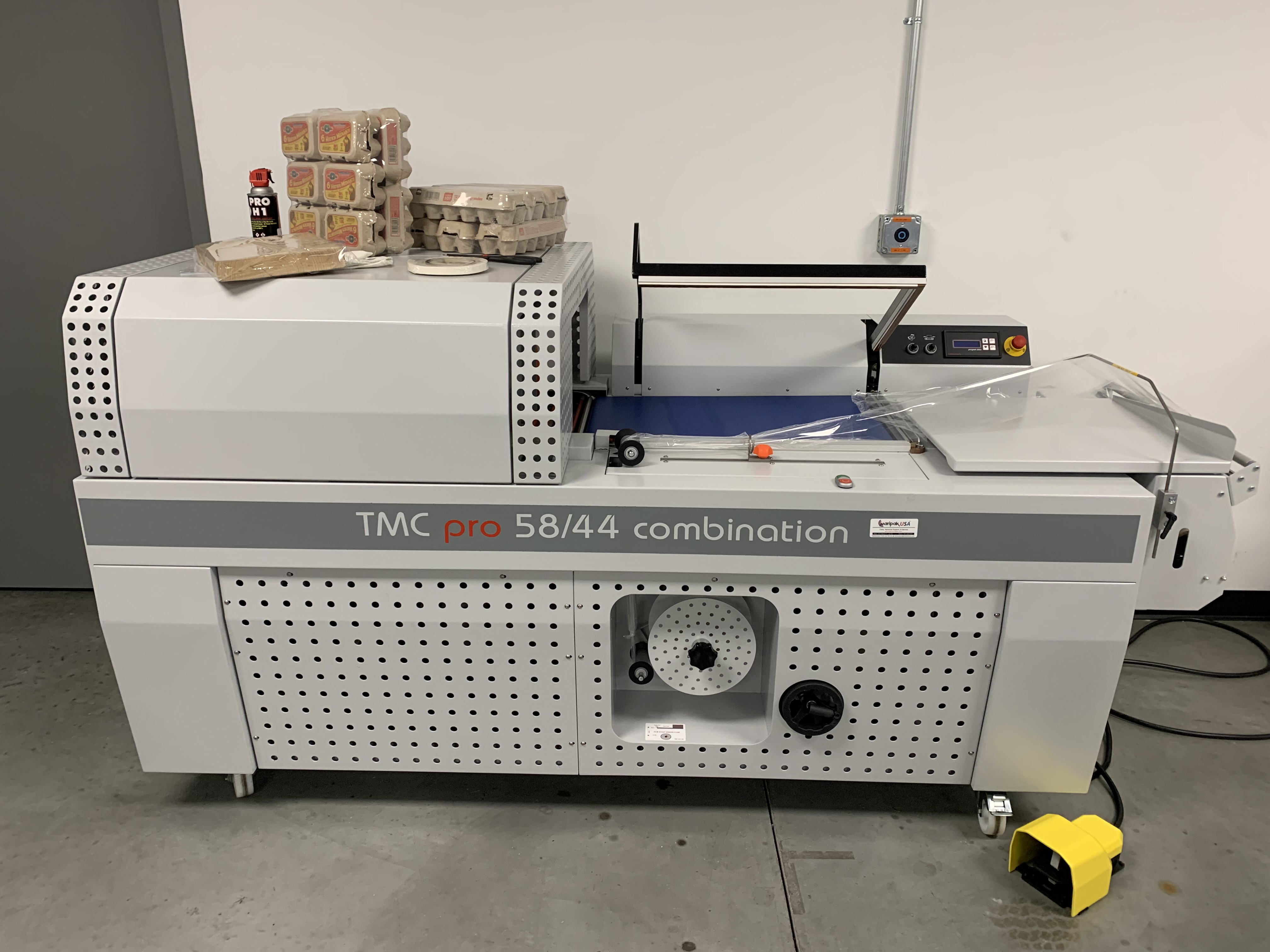

TMC PRO SERIES - SEMI-AUTOMATIC - L-SEALER & TUNNEL COMBO - MODEL # 5844-M

Maripak’s standard line of sealers are designed for L-seal applications where speed and rugged reliability are prime considerations in a small to medium-sized user.

The combo is an economical energy-efficient unit built to the same exacting standards as their high-speed wrappers, these versatile units are capable of wrapping many pieces approx 10-12 depending on size and film type when combined with the proper in-feed and motivated operator.

The 5844 is easy to use and rugged enough for constant operation on a daily basis while taking up very little space.

They come standard with premium features not available on most competitive models in this price range including low-mount film cradle, easy operation controls, touchscreen library to easily recall package setups, and automatic dwell time compensator.

The Maripak’s exclusive Hands-on Design make these units the most user-friendly L-Sealer Combo shrink units on the market today. World-Wide approved brands for all mechanical and electrical components make the 5844 as popular with maintenance staffs as with operators.

When your application calls for an L -seal combination wrapper capable of semi-automatic operation, Maripak’s 5844 series offers the lowest total-cost-in-operation available today.

All PARTS are stocked and available for immediate shipment. All technical support, service, and machine and equipment parts are fully supported by our dedicated technical Service Support and Parts location in the Greater Tampa FL area.

* Additional TMC Pro Series models are available, see our other models as well in this TMC PRO Equipment Series.

Technical Specifications

  • Seal Bar Opening: 10" - (250mm)
  • Maximum Capacity: 10 - 12 packs / minute *
  • Maximum Product Height: 7" - (177mm) - standard
  • Maximum Roll Diameter: 10" - (250mm)
  • Working Height (D): 33" - (838mm)
  • Compressed Air Supply: No - None
  • Film Types: POF: 7-37 micron / PVC: 15-25 micron
  • Color: Light Gray RAL7035
  • Working Principle: Motorized
  • L-Sealer Area Size: 23" x 17" - (580 x 440mm)
  • Maximum Product (W x L x H): 12" x 18" x 7"
    - (305 x 457 x 177mm)
  • Maximum Film Width: 20" - (550mm)

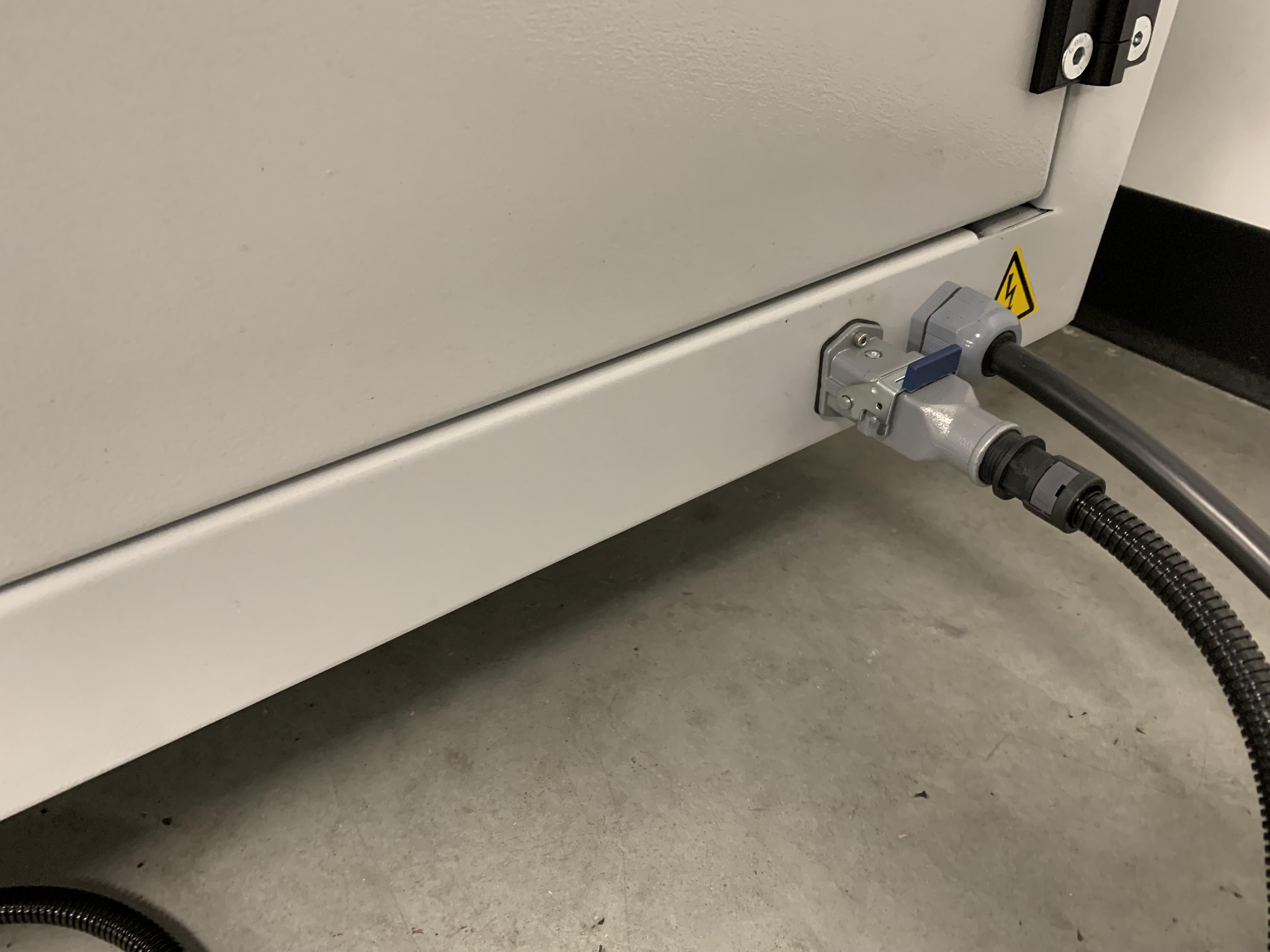

  • Installed Power: 220V - 50 Amp - 1-Phase
  • Consumption (Max / Average): 11 kW / 6 kW
  • Dimensions (AxBxC): 37 x 91 x 63"
    - (950 x 2300 x 1600mm)
  • Palletized Size (AxBxC) :45 x 98 x 71"
    - (1150 x 2500 x 1800mm)
  • Weight (Net / Gross): 1080 lbs / 1235 lbs
    - (490 kg / 560 kg)
  • Crated Weight: 2400 lbs
    - (1088 kg)

* For DIN A4 form and TMC Series real working speed depends on the product dimensions and film type.

Advantages:

  • Minimized layout requirement due to compact single-chassis design
  • Easy to use, compatible with health and safety standards
  • Ability to provide heat to wire at exact efficient doses, realized by the
    I-Sealing System ®
  • Ability to keep wire temperature constant, realized by the
    I-Sealing System ®
  • Increase in sealing quality, process accuracy, and life-span by stabilizing heat control
  • Cold temperature operation as low as 30 degrees F, anything below application should be confirmed

Features:

  • M Series: Sealing L-Bar is driven by a motor (no need for compressed air)
  • M Series: In automatic Mode, sealing bar cycles automatically in a predefined period
  • M Series: In free mode, the sealing bar is triggered by a button
  • M Series: Sensor detects any obstacle and stops the cycle automatically for safety
  • H Series: Sealing L-Bar is closed by hand, weight is balanced with a reverse load
  • H Series: Magnetic holder keeps L-Bar closed for a pre-defined time period
  • Speed inverter for air circulation fan of heat tunnel
  • Adjustable speed of tunnel conveyor for an optimized heat application period
  • Heat adjustment with digital PID control
  • Air circulation control by side flap handles
  • Automatic post cooling system for cooling down to 70C / 158F before switch off
  • Additional emergency temperature control system against fire risk
  • Easily transportable on wheels inside a facility

Sealing:

  • M Series: Sealing is actuated by a motor in between the wire and silicon rubber
  • H Series: Sealing is actuated manually in between the wire and silicon rubber
  • Sealing wire is positioned on a fixed bottom frame for safety
  • Sealing wire is embedded into heat-resistant fiber profile
  • Teflon belt covered rubber increases sealing quality and life-span of silicon

Flexibility:

  • Height of conveyor line can be adjusted with respect to varying product height
  • Working time of conveyor can be adjusted with respect to varying product length
  • Power of sealing wire can be adjusted with respect to varying film thicknesses
  • Heat, time and speed parameters can be easily adjusted via the digital control panel
  • Various language options are available in the digital control panel for MTO units

Optional:

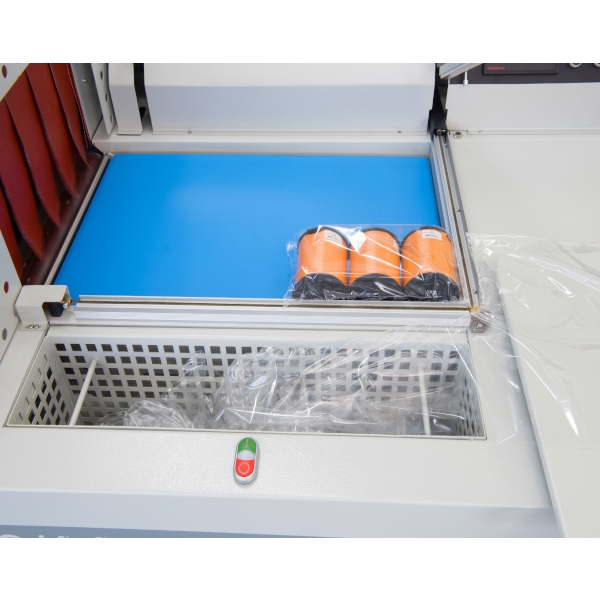

  • Automatic Trim Winder is standard and part of the base unit - Included

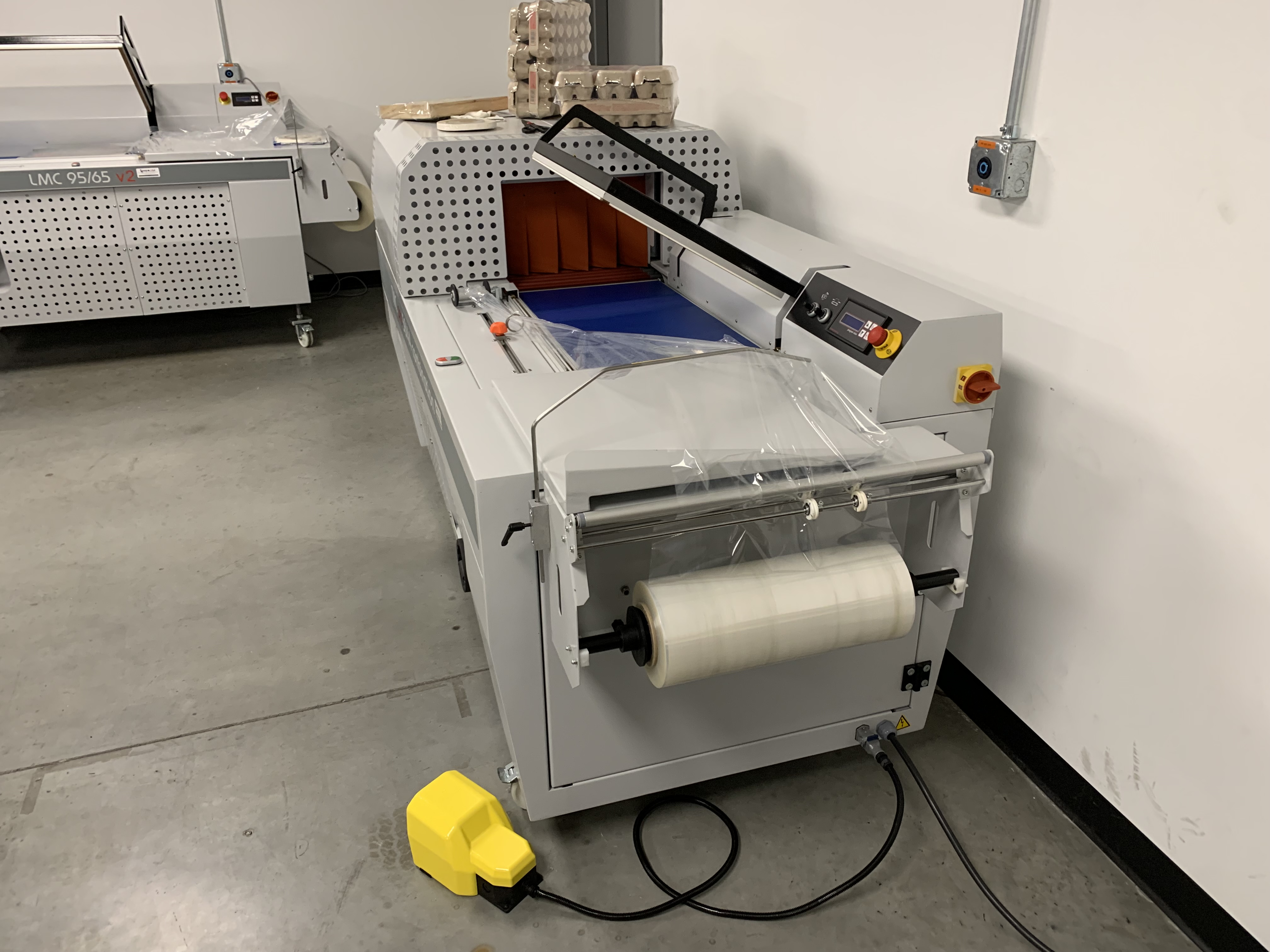

  • Foot Pedal option simple plug in is available upon request - add $650 for option
  • Tunnel conveyor alternatives: Wire Mesh, Teflon Mesh or Plastic Mesh - MTO see below
  • Metal Mesh Tunnel belt option is available upon request - add $350 for option
  • Heat-Proof Plastic Modular Tunnel Conveyor option is available upon request - add $1400 for option
  • Stainless steel versions are available for wet/moist/damp working environments - inquire
  • Virtual installation and training service is required to ensure operator readiness - add $390.00

Quality:

  • ISO9001 quality standards with the relevant norm's confirmation
  • CE certifications comply with the latest CE directives
  • World-wide approved brands for all mechanical and electrical components
  • 3-year warranty for non-wearable parts against manufacturing defects or faults
  • Wearable parts are not included in warranty terms
  • 1 set of wear parts is provided along with the machine
  • Spare parts availability as needed through our Techncial Parts Department






All Maripak machines and equipment are fabricated to the highest ISO 9001 standards and requirements

Additional Information and Resources


Price:

  • The machine shown is a base unit with no options or custom additions. Price provided above is for Budgetary reasons only.
  • Options and or Custom additions can be provided upon request and a custom quote will be provided by our Sales Support Group or an authorized distributor
  • The Online Prices may be used for general budgetary pricing purposes only and may differ slightly and are subject to change.
  • Firm pricing necessary to place any order must be confirmed with a formal quotation through the normal Maripak USA - RFQ / quote process along with the proper assignment of an authorized distributor.
  • Product designations starting with " B " are ( Built-to-Order ) items which are already engineered machines or equipment, but built individually to order.


Videos and Additional Content:

    • See all the Maripak USA equipment in action in a host of different applications by visiting our







    • Real production applications running on ever-evolving premium industrial shrink equipment that provides ROI


Qualifications:

    • Qualified for Government Section 179 Tax Deduction machine or equipment purchases and financing
    • Machine and equipment leasing and financing options are available through Maripak USA's preferred finance partner


Check the available Finance Options

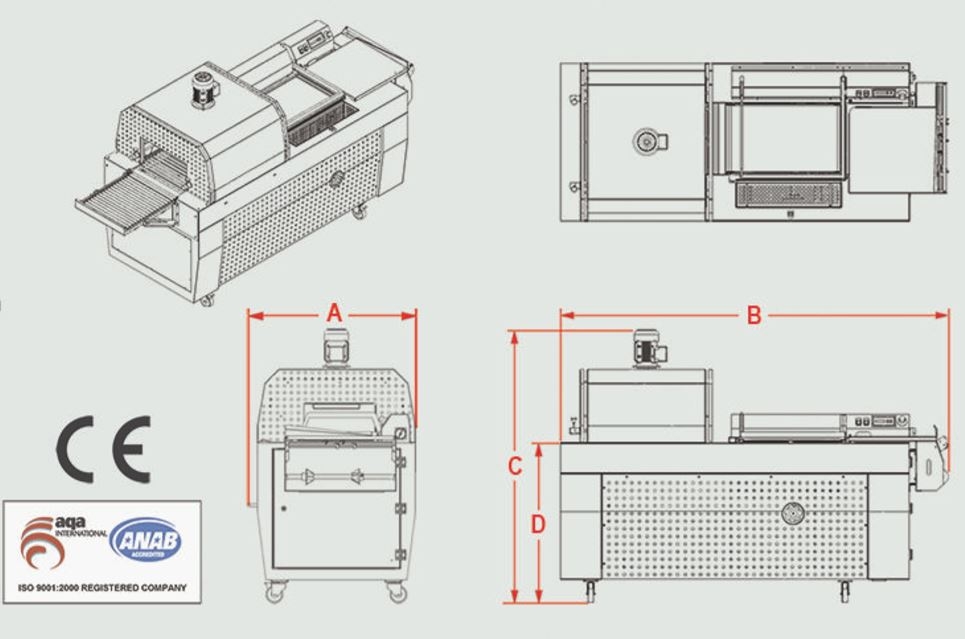

Drawings and Dimensions:


    Custom notifications:

    This machine may have a lead-time associated with it if not in stock. One of our machine agents will advise based on the specific model #, options, and or customization of your machine. A specific lead-time will be provided at that time.

    " Get A Quote " for a personalized e-quote.

    More Information
    SKU 42114
    Short Description



    The Maripak - TMC Pro Series Semi-Automatic - L-Bar Sealer is a no let down workhorse machine. Maripak’s standard line of sealers are designed for L-seal applications where speed and rugged reliability are prime considerations.

    This motorized unit's sealing bar is closed by a servo-driven motor for ease of use for any trained operator.

    Built to the same exacting standards as their high-speed wrappers, these versatile units are capable of wrapping many pieces per minute when combined with the proper infeed or motivated user.

    The model 5844-M is easy to use and rugged enough for constant operation. The simple motorized servo-driven operation makes this a fantastic product piece for any operation.



    Check out our current inventory here... See Our Live Inventory Feed



    Pricing shown below is for a standard base model with no options. Stocked Inventory Equipment Prices may be higher and vary based on the added options / upgrades in each unit.
    See below for specific specification details and information. Configure and build your own machine with options by request.



    Custom note

    Stock Item - Request a quote by the "Get A Quote" button along with adding any options, customization's and specific comments needed. A budgetary e-quote will be sent to you within minutes.

    Additional Info This machine ships from the Maripak USA location in the Greater Tampa Florida area and will be PLUS FREIGHT. Freight will be quoted and depend on delivery zip code.

    *** Special Custom Creating will be made to ensure safe and secure shipment of the machine and will be an added to the final cost of the machine as each machine's crating is different. ***
    Manufacturer Maripak
    Manufacturer's SKU MAR-TMC5844-M
    Manufacturer's Model Number TMC5844-M
    Manufacturer Category Semi Automatic L-Bar Sealer
    Unit of Measure each






    REAL PACKAGING APPLICATIONS IN ACTION



    TMC PRO SERIES - L-SEALER TUNNEL COMBO UNIT - Various Videos



    Video # 1
    Video # 2
    Video # 3
    Video # 4
    Video # 5

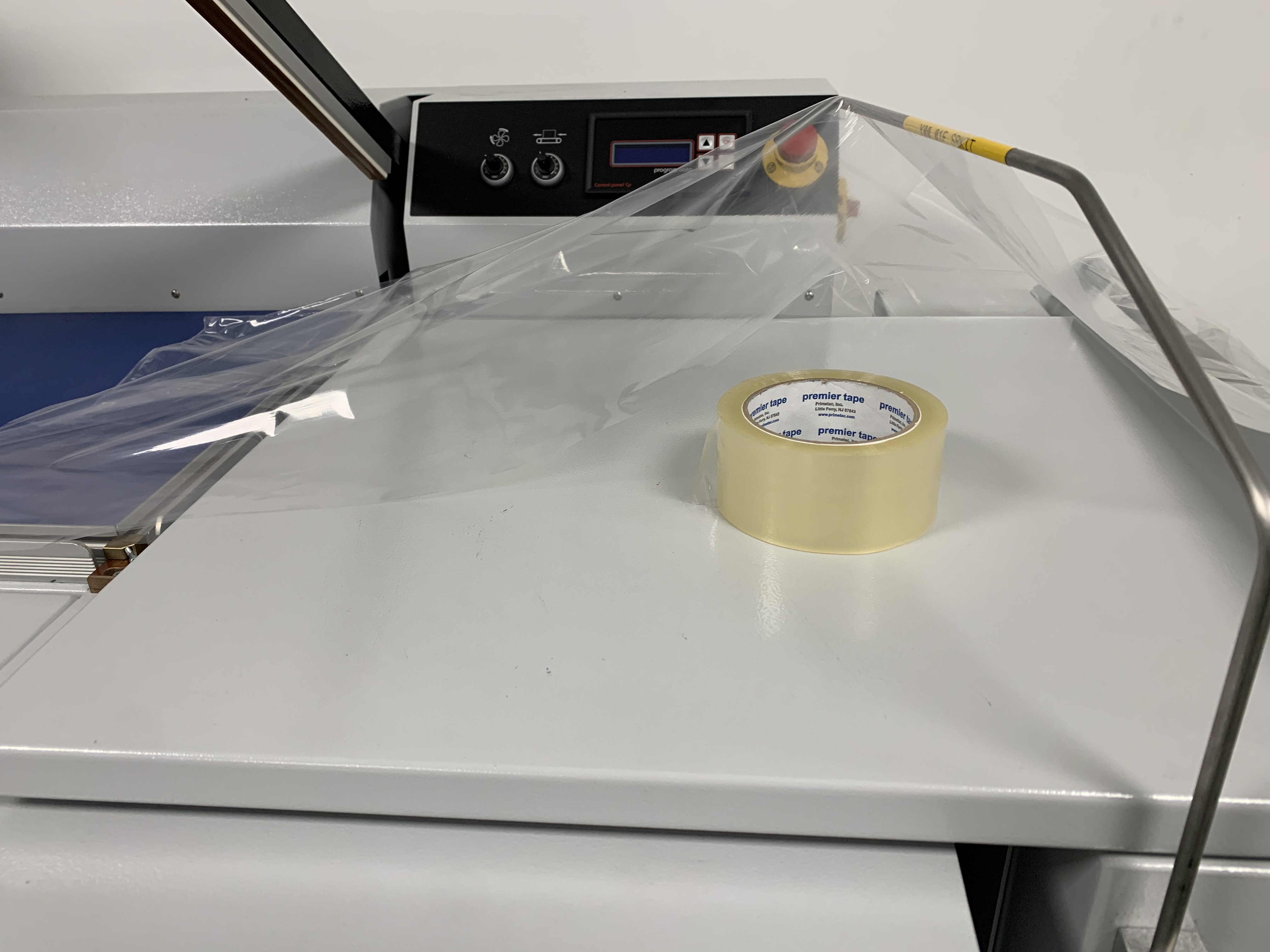

    Option - Video - Film Lifting Bar
    Option - Video - Foot Pedal





    AVAILABLE OPTIONS


    RECOMMENDED FOR YOUR TMC PRO SERIES SHRINK SYSTEM

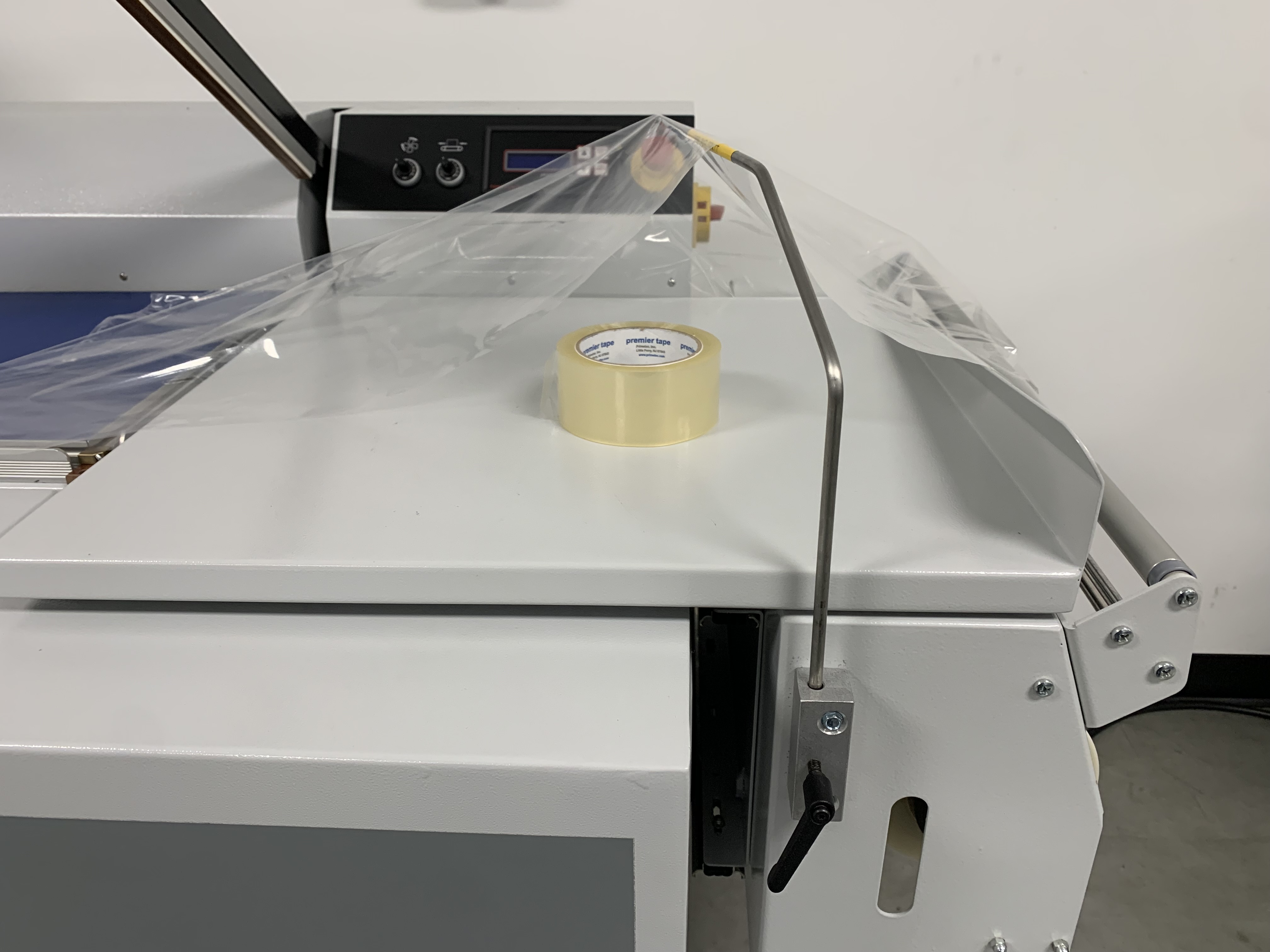

    "Film Lifter Bar" - Explainer - Video #1

    Play this video below


    Film Lifting Bar - Option - Video



    Film Lifting Bar - Image 1 Film Lifting Bar - Image 2 Film Lifting Bar - Image 3 Film Lifting Bar - Image 4 Film Lifting Bar - Image 5





    OPTION # 2



    "Foot Pedal" - Explainer - Video #1

    Play this video below


    Foot Pedal - Option - Video


    Foot Pedal - Image 1 Foot Pedal - Image 2 Foot Pedal - Image 3 Foot Pedal - Image 4





    HIGHLY RECOMMENDED FOR MAKING WRAPPING EASIER
