The Maripak - CLS Compact Series Fully Automatic - L-Bar Sealer and Tunnel - Model - # 4245 is a no let down spectacular machine. Maripak’s entry into the automatic line of sealers as a combination sealer and tunnel unit is designed for L-seal applications where speed and rugged reliability are prime considerations.
Built to the same exacting standards as their custom high-speed wrappers, these versatile units are capable of wrapping many pieces per minute running at approximately 66 ft / minute when combined with the proper in-feed.
The model 4245 is easy to use and rugged enough for constant operation 7 days a week.
Pricing shown below is for a standard base model with no options. Stocked Inventory Equipment Prices may be higher and vary based on the added options / upgrades in each unit. See below for specific specification details and information. Configure and build your own machine with options by request.
Availability:In stock
SKU
42944
Custom notifications:
Request a quote by using the "Get A Quote" button along with adding any options, customization's and specific comments needed. A budgetary e-quote will be sent to you within minutes.
If out of stock, unit can be back-ordered to fill any orders. Unit will be built to order with a lead-time TBD.

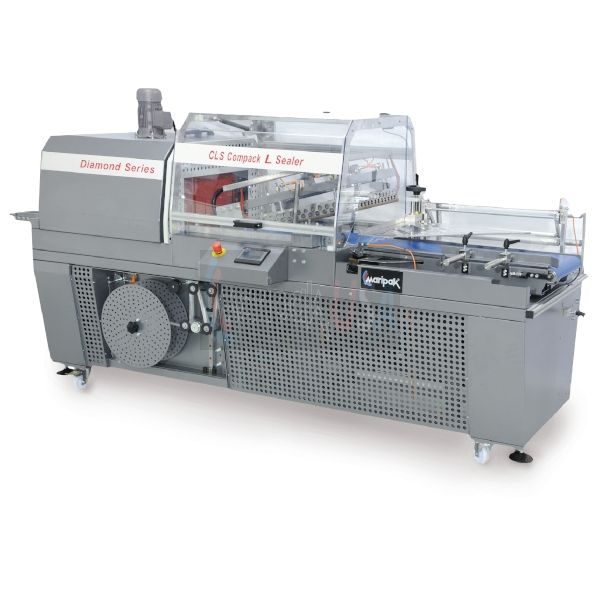

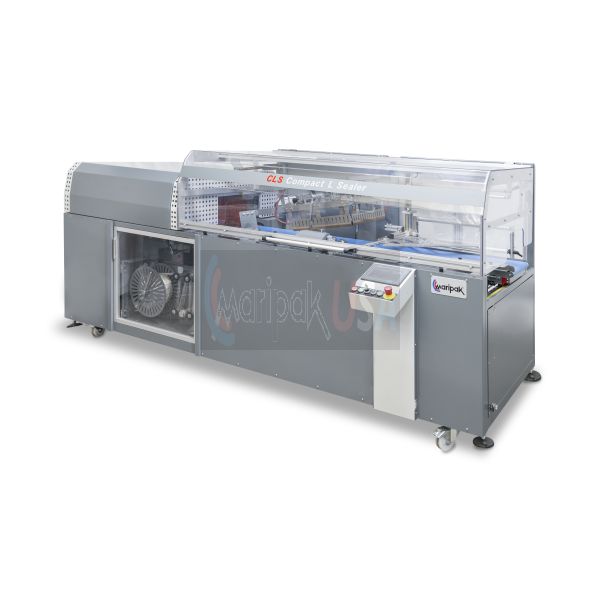

CLS COMPACT SERIES - FULLY- AUTOMATIC - L-BAR SEALER / Tunnel COMBO - MODEL # 4245
Maripak’s entry into the automatic line of sealers and tunnel combination machines are designed for L-seal applications where speed and rugged reliability are prime considerations in a small to a large-sized user.
Built to the same exacting standards as their custom high-speed wrappers, these versatile units are capable of wrapping many pieces minute running approx 66 feet/minute while depending on size and film typewhen combined with the proper in-feed.
The 4245 is easy to use and rugged enough for constant operation on a daily basis 7 days per week. They come standard with premium features not available on competitive models in this price range including low-mount film cradle, easy operation controls, touchscreen library to easily recall package setups, and automatic dwell time compensator.
The Maripak’s exclusive Hands-on Design make these units the most user-friendly L sealer combo wrapper on the market today. World-Wide approved brands for all mechanical and electrical components make the 4245 as popular with maintenance staffs as with operators.
When your application calls for an automatic L-seal and tunnel combo wrapper capable of fully-automatic no hands operation, Maripak’s CLS Compact 4245 offers the lowest total-cost-in-operation available today.
All PARTS are stocked and available for immediate shipment. All technical support, service, and machine and equipment parts are fully supported by our dedicated technical Service Support and Parts location in the Greater Tampa FL area.
Technical Specifications
Maximum Packaging Size: W:12" x L:14" x H:5" ** variable - (300x350x120mm)
Sealer Opening: 5" - (127mm) - * variable
Maximum Product Height: 4.5" - (114mm) - * variable
Conveyor Speed: 66ft / min - 20 mt/dk (adjustable) *

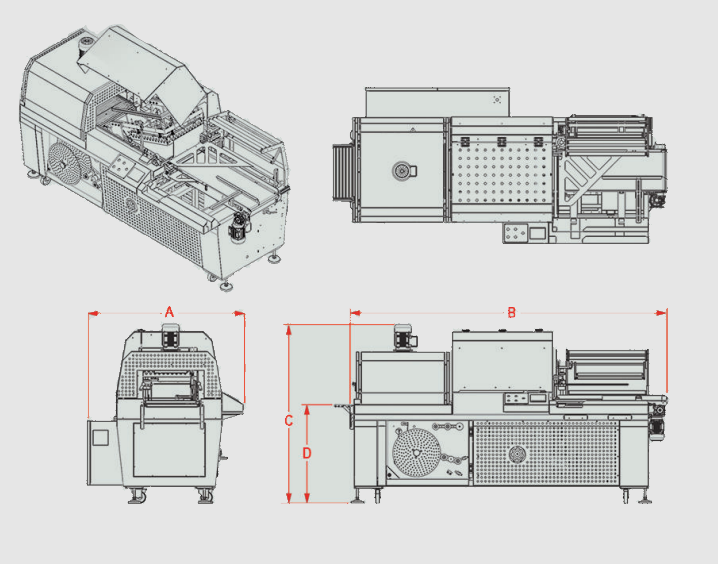

Dimensions (AxBxC):50 x 89 x 57" - (1280 x 2550 x 1450mm)
Palletized Size (WxLxH) :58 x 108 x 61" - (1480 x 2750 x 1550mm)
Weight (Net / Gross): 1687 lbs / 1896 lbs - (765 kg / 860 kg)
Crated Weight (Gross): 2750lbs - (1247 kg )
* For DIN A4 Form and CLS Compact L-Sealer real working speed depends on the product dimension and film type. ** Installed Power may have additional options in voltage, Amps, and Phase
Advantages:
Minimized layout requirement by compact single-chassis design
The most feasible automatic solution for average capacity processes
Easy to directly integrate with existing or new production lines
Recordable and re-callable temperature value adjustments
Cold temperature operation as low as 30 degrees F, anything below application should be confirmed
Features:
Reduced energy consumption and an increased esthetic look due to the Diamond design
Adjustable tunnel conveyor speed for the optimized heat application period
Automatic post-cooling mechanism for cooling down to 158 degrees F / 70 degree C before switch off
Additional emergency temperature control system against fire risk
Automatic length detection by sensor synchronized with encoder control
ISO9001 quality standards with the relevant norm's confirmation
World-wide approved brands for all mechanical and electrical components
CE certifications comply with the latest CE directives
3-year warranty for non-wearable parts against manufacturing defects or faults
Wearable parts are not included in warranty terms
1 set of wear parts is provided along with the machine
5-year spare parts availability is provided
All Maripak machines and equipment are fabricated to the highest ISO 9001 standards and requirements
Additional Information and Resources
Price:
The machine shown is a base unit with no options or custom additions. Price provided above is for Budgetary reasons only.
Options and or Custom additions can be provided upon request and a custom quote will be provided by our Sales Support Group or an authorized distributor
The Online Prices may be used for general budgetary pricing purposes only and may differ slightly and are subject to change.
Firm pricing necessary to place any order must be confirmed with a formal quotation through the normal Maripak USA - RFQ / quote process along with the proper assignment of an authorized distributor.
Product designations starting with " B "are ( Built-to-Order ) items which are already engineered machines or equipment but built individually to order.
Videos and Additional Content:
See all the Maripak USA equipment in action in a host of different applications by visiting our
Real production applications running on ever-evolving premium industrial shrink equipment that provides ROI
Qualifications:
Qualified for Government Section 179 Tax Deduction machine or equipment purchases and financing
Machine and equipment leasing and financing options are available through Maripak USA's preferred finance partner
This machine will have a lead-time associated with it. One of our machine agents will advise based on the specific model #, options, and or customization of your machine. A specific lead-time will be provided at that time.
The Maripak - CLS Compact Series Fully Automatic - L-Bar Sealer and Tunnel - Model - # 4245 is a no let down spectacular machine. Maripak’s entry into the automatic line of sealers as a combination sealer and tunnel unit is designed for L-seal applications where speed and rugged reliability are prime considerations.
Built to the same exacting standards as their custom high-speed wrappers, these versatile units are capable of wrapping many pieces per minute running at approximately 66 ft / minute when combined with the proper in-feed.
The model 4245 is easy to use and rugged enough for constant operation 7 days a week.
Pricing shown below is for a standard base model with no options. Stocked Inventory Equipment Prices may be higher and vary based on the added options / upgrades in each unit. See below for specific specification details and information. Configure and build your own machine with options by request.
Custom note
Request a quote by using the "Get A Quote" button along with adding any options, customization's and specific comments needed. A budgetary e-quote will be sent to you within minutes.
Additional Info
This machine ships direct from the Greater Tampa Florida area and will be PLUS FREIGHT. Freight will be quoted and depend on delivery zip code.
*** Special Custom Creating will be made to ensure safe and secure shipment of the machine and will be an added to the final cost of the machine as each machine's crating is different. ***
