The Maripak - IMPACK Pro Series - Fully Automatic - Side Sealer is a must have quality built machine. Maripak’s entry into the standard line of intermittent side sealers with a 24" conveyor belt width. They are designed for automatic side seal applications where speed and rugged reliability are prime considerations.
Built to the same exacting high standards as all of their higher-end wrappers, these versatile units are capable of wrapping many pieces per minute when combined with the proper infeed.
The IMPACK Pro 60 is easy to use and rugged enough for constant and consistent operation.
Pricing shown below is for a standard base model with no options. Stocked Inventory Equipment Prices may be higher and vary based on the added options / upgrades in each unit. See below for specific specification details and information. Configure and build your own machine with options by request.
Availability:In stock
SKU
46960
Custom notifications:
Request a quote by the "Get A Quote" button along with adding any options, customization's and specific comments needed. A budgetary e-quote will be sent to you within minutes.
If out of stock, unit can be back-ordered to fill any orders. Unit will be built to order with a lead-time TBD.
IMPACK PRO 60 - FULLY - AUTOMATIC - INTERMITTENT SIDE SEALER - MODEL # IMPPRO60
Maripak’s entry into the standard line of intermittent side sealers are designed for automatic side seal applications where speed and rugged reliability are prime considerations in a medium to the large-sized user. Built to the same exacting high standards as all of their higher-end wrappers, these versatile units are capable of wrapping many pieces. System estimates are approx 98 feet/minute with 60 cycles/minute depending on size and film typewhen combined with the proper infeed.
The IMPACK Pro 60 is easy to use and rugged enough for constant and consistent operation on a daily basis while taking up minimal space.
They come standard with premium features not available on most competitive models in this price range including low-mount film cradle, easy operation controls, touchscreen library to easily recall package setups, and automatic dwell time compensator.
The Maripak’s exclusive Hands-on Design make these units the most user-friendly side sealer packaging unit on the market today. World-Wide approved brands for all mechanical and electrical components make the IMPACK Pro 60 as popular with maintenance staffs as with operators.
When your application calls for an intermittent side seal wrapper capable of fully-automatic operation, Maripak’s IMPACK Pro Series offers the lowest total-cost-in-operation available today.
All PARTS are stocked and available for immediate shipment. All technical support, service, and machine and equipment parts are fully supported by our dedicated technical Service Support and Parts fulfillment location in the Greater Tampa FL area.
* Additional IMPACK Pro Series models are available for various size products, see our other models as well in this IMPACK PRO Equipment Series.
Technical Specifications
Seal Bar Opening: 10" - (250mm)
Maximum Conv. Speed: 98 ft / minute - (30 mt / minute) - adjustable
Maximum Cycle: 60 cycle / minute - (example: DIN A4 form)
Maximum Roll Diameter: 12" - (300mm) - standard
Working Height (D): 34" - (860mm)
Compressed Air Supply: No - None with standard unit - ** (see options)
Installed Power: 220 Volt - 35 Amp - 1 Phase - ** 220 Volt - 20 Amp - 3 Phase
Consumption (Max / Average): 6 kW / 3 kW

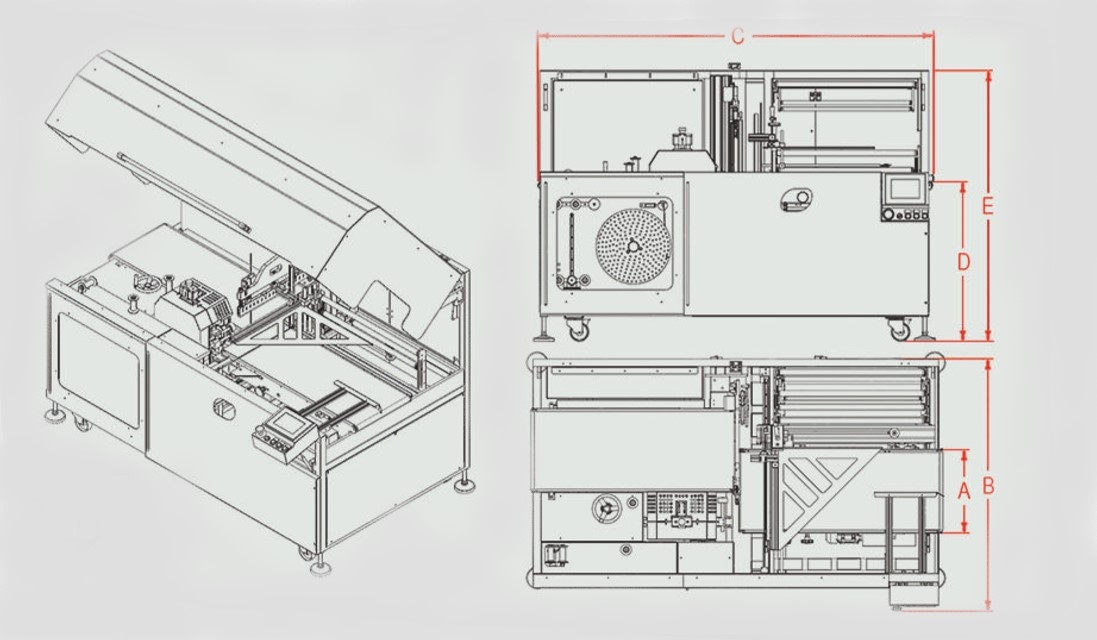

Dimensions (BxCxE): 65 x 95 x 59" - (1650 x 2400 x 1500mm)
Palletized Size (AxBxC) :73 x 102 x 63" - (1850 x 2600 x 1600mm)
Weight (Net / Gross): 2315 lbs / 2580 lbs - (1050 kg / 1170 kg)
* For DIN A4 form and IMPACK PRO Series servo real working speed depends on the product dimensions and film type. ** Optional Power Upgrade Available - 220 Volt - 3 Phase and 480 Volt - 3 Phase - upgrades will have an upcharge.
Advantages:
Very compact and new esthetic " Pro " design
Minimized layout requirement due to this new "Pro" design
Continuous side sealer provides unlimited length packaging ability
Very fast and flawless sealing property by Servo Drive Vertical Sealer
Easy to integrate with any production line directly
Recordable and re-call package parameter settings
Easy to use, compatible with health and safety standards
Features:
Automatic length detection by sensor synchronized
User-friendly color touch screen operation panel
Automatic packaging film drive with tension control
Automatic trim winder with tension control
Feeding frequency control by sensor detection and PLC control
Easily transportable on wheels inside a facility
Sealing:
The center-seal property provides an accurate and linear sealing line
Adjustable precision and pressure on cutting and sealing force
PID controlled sealing temperature inserted by the touch panel
Alternative sealing blade structures for various packaging materials
Product clearance control under seal bar by a sensor
Flexibility:
Easily adjustable wrt. varying product sizes and capacity
Various language options and adaptable touch keyboard
Memory Receipt property for prompt adjustments
Perfect sealing blade design compatible with varying thicknesses
Closing / Linking Belt w SE *(3 bar compressed air required) - Add $3,600
Auto-Lubrication System for enhanced maintenance - Add $5,950
Siemens Control and Operating System Upgrade - Add $6,800
Adjustment Package - 3 x Motorized Adjustments - Add $9,490
Control of external in-feed conveyor through the operator panel - Inquire
Printed film marker detection sensor and programing system - Inquire
Center Folder w Roll Splicing Unit for single-layer flat film app. - Inquire
Vertical photocell to detect thin product - specific to model - Inquire
Ability to control additional Smart Sync Conveyors by inverters - Inquire
Quality:
ISO9001 quality standards with the relevant norm's confirmation
CE certifications comply with the latest CE directives
World-wide approved brands for all mechanical and electrical components
3-year warranty for non-wearable parts against manufacturing defects or faults
Warranty extendable by 1-year increments for an additional cost
Wearable parts are not included in warranty terms
1 set of wear parts is provided along with the machine
5-year spare part availability is provided
All Maripak machines and equipment are fabricated to the highest ISO 9001 standards and requirements
Additional Information and Resources
Price:
The machine shown is a base unit with no options or custom additions. Price provided above is for Budgetary reasons only.
Options and or Custom additions can be provided upon request and a custom quote will be provided by our Sales Support Group or an authorized distributor
The Online Prices may be used for general budgetary pricing purposes only and may differ slightly and are subject to change.
Firm pricing necessary to place any order must be confirmed with a formal quotation through the normal Maripak USA - RFQ / quote process along with the proper assignment of an authorized distributor.
Product designations starting with " B "are ( Built-to-Order ) items which are already engineered machines or equipment but built individually to order.
Videos and Additional Content:
See all the Maripak USA equipment in action in a host of different applications by visiting our
Real production applications running on ever-evolving premium industrial shrink equipment that provides ROI
Qualifications:
Qualified for Government Section 179 Tax Deduction machine or equipment purchases and financing
Machine and equipment leasing and financing options are available through Maripak USA's preferred finance partner
This machine will have a lead-time associated with it. One of our machine agents will advise based on the specific model #, options, and or customization of your machine. A specific lead-time will be provided at that time.
