Side Sealer - IMPACK PRO-MOTION 20

Side Sealer - IMPACK PRO-MOTION 20

Side Sealer - IMPACK PRO-MOTION 60

Side Sealer - IMPACK PRO-MOTION 60

was $72,600.00 Special Price $67,290.00

The Maripak - IMPACK PRO-MOTION Series - Fully-Automatic Continuous Motion Side Sealer is a must-have quality built machine. Maripak’s entry into the standard line of continuous motion side sealers are designed for fully-automatic side seal applications where high speed and rugged reliability are prime considerations.

Built to the same exacting high standards as all of their higher-end wrappers, these versatile units are capable of wrapping many pieces. System estimates are approx 98 feet/minute with 110 cycles/minute depending on size and film type when combined with the proper infeed.

The IMPACK Pro-MOTION 40 is easy to use and rugged enough for constant and consistent operation when extremely fast and accurate product packaging is a must.

Check out our current inventory here... See Our Live Inventory Feed

Pricing shown below is for a standard base model with no options. Stocked Inventory Equipment Prices may be higher and vary based on the added options / upgrades in each unit.
See below for specific specification details and information. Configure and build your own machine with options by request.

Availability: In stock
SKU
46975

Custom notifications:

Pricing By Request " Get A Quote " for a personalized quote. This model is built to order.

If out of stock, unit can be back-ordered to fill any orders. Unit will be built to order with a lead-time TBD.

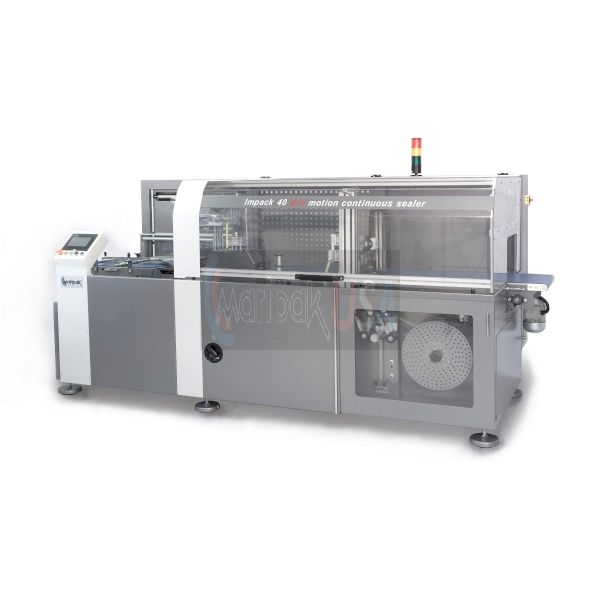

IMPACK PRO-MOTION 40 - AUTOMATIC - CONTINUOUS SIDE SEALER - MODEL # IMPPMO40

Maripak’s entry into the standard line of continuous motion side sealers are designed for fully-automatic side seal applications where high speed and rugged reliability are prime considerations in a medium to the large-sized user.  Built to the same exacting high standards as all of their higher-end wrappers, these versatile units are capable of wrapping many pieces. System estimates are approx 98 feet/minute with 110 cycles/minute depending on size and film type when combined with the proper infeed.

The IMPACK Pro-MOTION 40 is easy to use and rugged enough for constant and consistent operation on a daily basis while taking up minimal space.

They come standard with premium features not available on most competitive models in this price range including low-mount film cradle, easy operation controls, touchscreen library to easily recall package setups, and automatic dwell time compensator.

The Maripak’s exclusive Hands-on Design make these units the most user-friendly side sealer packaging unit on the market today. World-Wide approved brands for all mechanical and electrical components make the IMPACK Pro-MOTION 40 as popular with maintenance staffs as with operators.

When your application calls for a continuous motion side seal wrapper capable of fully-automatic operation, Maripak’s IMPACK Pro-Motion Series offers the lowest total-cost-in-operation available today with the most advanced and evolved technologies.

All PARTS are stocked and available for immediate shipment. All technical support, service, and machine and equipment parts are fully supported by our dedicated technical Service Support and Parts fulfillment location in the Greater Tampa FL area.

* Additional IMPACK PRO-MOTION Series models are available for various size products, see our other models as well in this IMPACK PRO-MOTION Equipment Series.

Technical Specifications

  • Seal Bar Opening: 10" - (250mm)
  • Maximum Conv. Speed: 98 ft / minute
    - (30 mt / minute) - adjustable
  • Maximum Cycle: 110 cycle / packs / minute
    - (example: DIN A4 form)
  • Maximum Roll Diameter: 11" - (270mm) - standard
  • Working Height (D): 34" - (860mm) - Opional: (+50mm)
  • Compressed Air Supply: No - None with standard unit
    - ** (see options)
  • Film Types: POF, PP "V" Knife: 7-40 micron / PE,OPP "W" Knife: 40-80 micron
  • Color: Customized - Light Gray
    RAL7015 + RAL7010
  • Working Principle: Servo Driven
  • Cross Sealer Length: 21" - (540mm)
  • Conveyor Belt Width (A): 16" - (400mm)
  • Maximum Film Width: 26" - (700mm)
  • Installed Power: 220 Volt - 25 Amp - 3 Phase
  • Consumption (Max / Average): 7 kW / 6 kW
  • Dimensions (AxBxC): 59 x 128 x 58"
    - (1500 x 3250 x 1480mm)
  • Palletized Size (AxBxC) :67 x 136 x 65"
    - (1700 x 3450 x 1650mm)
  • Weight (Net / Gross): 2161 lbs / 2227 lbs
    - (980 kg / 1010 kg)

* For DIN A4 form and IMPACK PRO-MOTION Series servo real working speed depends on the product dimensions and film type.

Advantages:

  • Very compact and new aesthetic " Pro " design
  • Minimized layout requirement due to this new "Pro" design
  • Nonstop operation with a continuous motion system
  • Continuous side sealer provides unlimited length packaging ability
  • Dual-axis servo motor driven cross sealing
  • High precision and consistency with cross and side seal
  • Very fast and flawless sealing property by the servo drive vertical sealer
  • Control of film quantity on all 4 sides of packages for an overall reduction in waste and consumable costs
  • Recordable and re-callable package parameter settings
  • Easy to integrate with any production line directly
  • Packaging runnability with no length limits
  • Compact single-chassis, and reduced energy consumption
  • Easy to use, compatible with health and safety standards

Features:

  • Automatic encoder controlled speed & length detection by sensor synchronization
  • User-friendly color touch screen operation control panel
  • Ergonomic operators panel with most useful hard buttons
  • Easy programmable format changes for different package sizes
  • Cross and continuous sealing knives with PID controlled heaters
  • Automatic packaging film drive with tension control
  • Photocell controlled package distance positioned feeding
  • Automatic package length detection option
  • Feeding frequency control by sensor detection and PLC control
  • Up-to-date safety electric and mechanical measures of CE directives
  • Easily transportable on wheels inside a facility

Sealing:

  • Film sealing with no distortion with non-stop and tight processing operation
  • Up to 15% advantage in film consumption
  • Film tension releasing mechanism on the cross-sealing point
  • Trim winder is designed to control very thin films without breakage
  • Adjustable " Central Sealing " for varied package height applications
  • Alternative sealing blade structures for various packaging film materials
  • Height adjustable cross sealer (optional motorized)
  • Product clearance control under seal bar by an auto sensor

Flexibility:

  • Easily adjustable for varying product sizes and capacity
  • Native and various language options and adaptable touch keyboard
  • Memory Recipe property for prompt and package dimension adjustments
  • Perfect sealing blade design compatible with varying thicknesses
  • Warning notifications and messages for potential emergency cases
  • "Navigation Control" for actual throughput and estimated packs/time units

Optional / Upgrades:

  • Smart-Konnect Remote Access Upgrade for troubleshooting - Add - $5,900
  • Level #1 upgraded Sealing System for higher film thickness - Add - $2,000
  • Translucent / Clear Product Sensing Photo-Eye Upgrade - Add - $1,600
  • Auto-Lubrication System for enhanced simple maintenance - Add $5,950
  • Auto-Adjustment Package - 3 x Motorized Adjustments Pkg - Add $9,490
  • Control of external in-feed conveyor through the operator panel - Inquire
  • Printed film marker detection sensor and programing system - Inquire
  • Center Folder w Roll Splicing Unit for single-layer flat film app. - Inquire
  • Vertical photocell to detect thin product - specific to model - Inquire
  • Ability to control additional Smart Sync Conveyors by inverters - Inquire

Quality:

  • ISO9001 quality standards with the relevant norm's confirmation
  • CE certifications comply with the latest CE directives
  • World-wide approved brands for all mechanical and electrical components
  • 3-year warranty for non-wearable parts against manufacturing defects or faults
  • Warranty extendable by 1-year increments for an additional cost
  • Wearable parts are not included in warranty terms
  • 1 set of wear parts is provided along with the machine
  • 5 year spare part availability is provided






All Maripak machines and equipment are fabricated to the highest ISO 9001 standards and requirements

Additional Information and Resources


Price:

  • The machine shown is a base unit with no options or custom additions. Price provided above is for Budgetary reasons only.
  • Options and or Custom additions can be provided upon request and a custom quote will be provided by our Sales Support Group or an authorized distributor
  • The Online Prices may be used for general budgetary pricing purposes only and may differ slightly and are subject to change.
  • Firm pricing necessary to place any order must be confirmed with a formal quotation through the normal Maripak USA - RFQ / quote process along with the proper assignment of an authorized distributor.
  • Product designations starting with " B " are ( Built-to-Order ) items which are already engineered machines or equipment but built individually to order.


Videos and Additional Content:

      • See all the Maripak USA equipment in action in a host of different applications by visiting our







        • Real production applications running on ever-evolving premium industrial shrink equipment that provides ROI


Qualifications:

    • Qualified for Government Section 179 Tax Deduction machine or equipment purchases and financing
    • Machine and equipment leasing and financing options are available through Maripak USA's preferred finance partner


Check the available Finance Options


Drawings and Dimensions:


    Custom notifications:

    This machine will have a lead-time associated with it. One of our machine agents will advise based on the specific model #, options, and or customization of your machine. A specific lead-time will be provided at that time.

    " Request A Quote " for a personalized e-quote.

    More Information
    SKU 46975
    Short Description

    The Maripak - IMPACK PRO-MOTION Series - Fully-Automatic Continuous Motion Side Sealer is a must-have quality built machine. Maripak’s entry into the standard line of continuous motion side sealers are designed for fully-automatic side seal applications where high speed and rugged reliability are prime considerations.

    Built to the same exacting high standards as all of their higher-end wrappers, these versatile units are capable of wrapping many pieces. System estimates are approx 98 feet/minute with 110 cycles/minute depending on size and film type when combined with the proper infeed.

    The IMPACK Pro-MOTION 40 is easy to use and rugged enough for constant and consistent operation when extremely fast and accurate product packaging is a must.

    Check out our current inventory here... See Our Live Inventory Feed

    Pricing shown below is for a standard base model with no options. Stocked Inventory Equipment Prices may be higher and vary based on the added options / upgrades in each unit.
    See below for specific specification details and information. Configure and build your own machine with options by request.

    Custom note

    Pricing By Request " Get A Quote " for a personalized quote. This model is built to order.

    Additional Info This machine ships direct from the Greater Tampa Florida area and will be PLUS FREIGHT. Freight will be quoted and depend on delivery zip code.

    *** Special Custom Creating will be made to ensure safe and secure shipment of the machine and will be an added to the final cost of the machine as each machine's crating is different. ***
    Manufacturer Maripak
    Manufacturer's SKU MAR-IMPPMO40
    Manufacturer's Model Number IMPPMO40
    Manufacturer Category Continuous Side Sealers Shrink Equipment
    Unit of Measure each
