The Maripak - WRAPTURE Pro-MOTION Series - Fully-Automatic Continuous Motion Trimless Top Side Sealer is a must have quality built machine. Maripak’s entry into the continuous motion trimless top side sealers are designed for fully-automatic top side seal applications where high speed and rugged reliability are prime considerations.
Built to the same exacting high standards as all of their higher end wrappers, these versatile units are capable of wrapping many pieces. System estimates are approx 98 feet/minute with 110 cycles/minute depending on size and film typewhen combined with the proper infeed. .
The WRAPTURE Pro-MOTION 40 is easy to use and rugged enough for constant and consistent operation when extremely fast and accurate product packaging is a must.
See below for specific specification details and information. Configure and build your own machine with options by request.

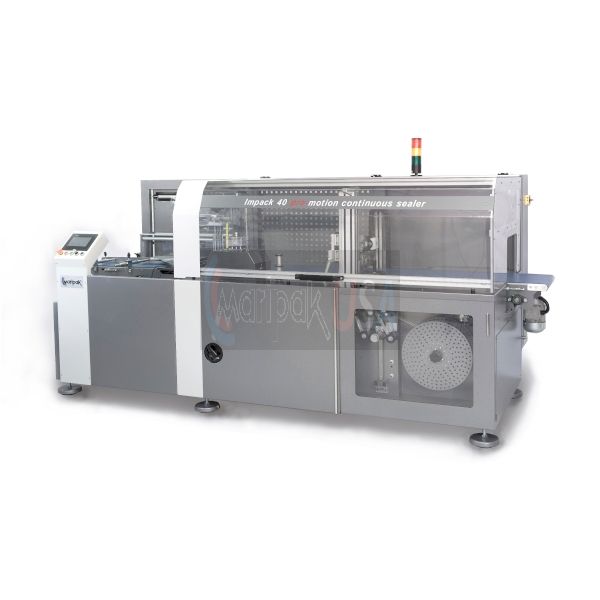

WRAPTURE Pro-MOTION 40 - AUTOMATIC - CONTINUOUS SIDE SEALER - MODEL # WPPMO40
Maripak’s entry into the continuous motion trimless top side sealers are designed for fully-automatic top side seal applications where high speed and rugged reliability are prime considerations in a medium to large sized user. Built to the same exacting high standards as all of their higher end wrappers, these versatile units are capable of wrapping many pieces. System estimates are approx 98 feet/minute with 110 cycles/minute depending on size and film typewhen combined with the proper infeed.
The WRAPTURE Pro-MOTION 40 is easy to use and rugged enough for constant and consistent operation on a daily basis while taking up minimal space.
They come standard with premium features not available on most competitive models in this price range including low-mount film cradle, easy operation controls, touchscreen library to easily recall package setups, and automatic dwell time compensator.
The Maripak’s exclusive Hands on Design make these units the most user-friendly side sealer packaging unit on the market today. World-Wide approved brands for all mechanical and electrical components make the WRAPTURE Pro-MOTION 40 as popular with maintenance staffs as with operators.
When your application calls for an continuous motion side seal wrapper capable of fully-automatic operation, Maripak’s WRAPTURE Pro-Motion Series offers the lowest total-cost-in-operation available today with the most advanced and evolved technologies.
All PARTS are stocked and available for immediate shipment. All technical support, service, and machine and equipment parts are fully supported by our dedicated technical Service Support and Parts fulfillment location in the Greater Tampa FL area.
* Additional WRAPPTURE Pro-MOTION Series models are available for various size products, see our other models as well in this WRAPTURE Pro-MOTION Equipment Series.
Technical Specifications
Maximum Package Size:: 14" w x 6" h - length: unlimted - (w-350 x l-150mm)
Seal Bar Opening: 9" - (240mm)
Maximum Conv. Speed: 65 ft / minute - (20 mt / minute) - option up to 98 ft / minute - (30 mt / minute)
Cross Sealer Length: 21" - (540mm)
Working Height: 34" - (860mm)
Conveyor Belt Width: 16" - (400mm)
Minimum Package Length: 3" - (70mm)
Maximum Film Width: 39" - (1000mm)
Film Thickness (min / max): 10 to 80 micron - single layer
Film Types: POF, PE, OPP, CPP, PP
Maximum Roll Diameter: 12" - (300mm) - standard
Color: Customized - Mixed + Light Gray RAL7035
Compressed Air Supply: Yes - air required - 6 bar
Installed Power: 400V 9 Ampere 3 Phase
Consumption (Max / Average): 7 kW / 6 kW

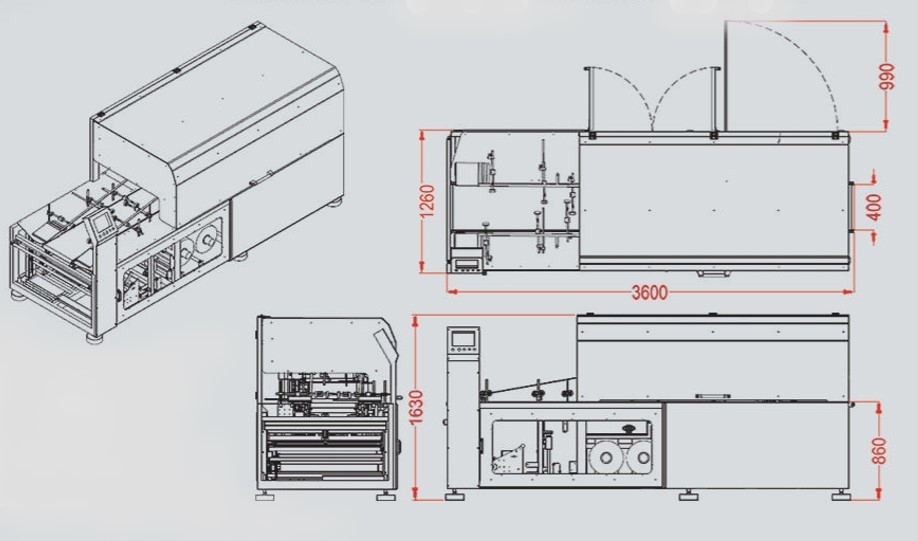

Dimensions: 142" x 50" x 16" x 64" - (3600 x 1260 x 400 x 1630mm)
Palletized Size (LxWxH) :148 x 57 x 70" - (3750 x 1440 x 1790mm)
Weight (Net / Gross): 1720 lbs / 2006 lbs - (780 kg / 910 kg)
* For DIN A4 form and WRAPTURE Pro-MOTION Series real working speed depends on the product dimensions and film type.
Advantages:
Top side sealing system with no trim or film waste
High speed automation with continuous-motion packaging system
Non-stop packaging operation by syncronized bi-axial seal bar movement
Recordable and re-callable package parameter settings
Easy to integrate with any production line directly
Packaging runnability with no length limits
Compact single-chassis,and reduced energy consumption
Easy to use, compatible with health and safety standards
Features:
Automatic encoder controlled speed and length detection by sensor synchronization

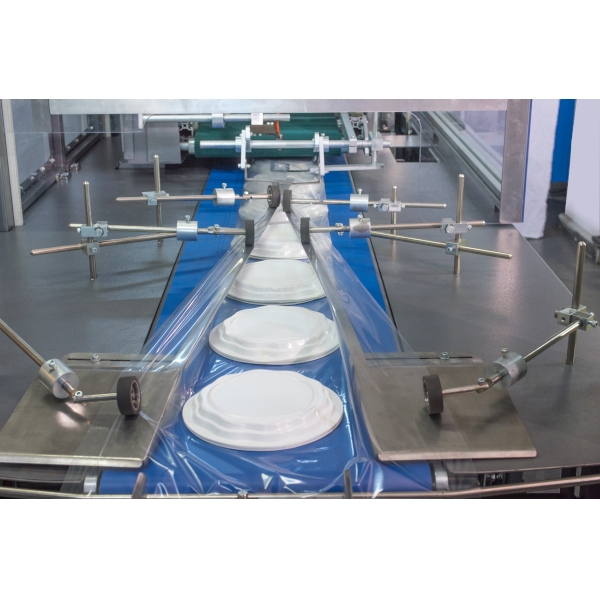

FIlm package transport via pressurized top belt principle

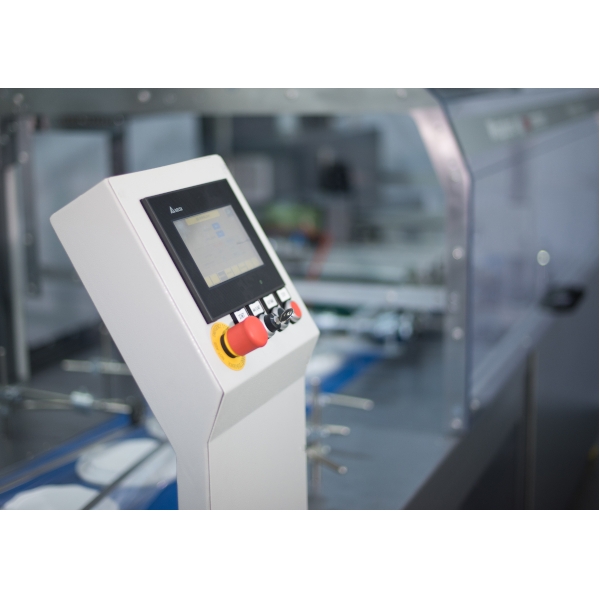

User-friendly color touch screen operation control panel
Ergonomic operators panel with most useful hard buttons
Easy programmable format changes for different package sizes
Automatic packaging film drive with tension control
Feeding frequency control by sensor detection and PLC control
Up-to-date safety electric and mechanical measures of CE directives
Easily transportable inside a facility
Sealing:
Center seal adjustment for the cross sealer
Film sealing with no distortion with non-stop and tight processing operation
Up to 15% advantage in film consumption
Film tension releasing mechanism on the cross-sealing point
Hot knife continuous sealing is controlled with PID software
Customized sensitive top sealing without breaking the film
Product clearance control under seal bar by auto sensor
Flexibility:
Ability to utilize single layer film with accurate width
Easily adjustable for varying product sizes and capacity
Runs with flat film which is an overall advantage
Native, various, and new added language options on adaptable touch keyboard
Memory Recipe property for prompt and package dimension adjustments
Perfect sealing blade design compatible with varying thicknesses
Warning notifications and messages for potential emergency cases
"Navigation Control" for actual throughput and estimated packs/time units
Optional:
Registered printed film control
Automatic Film splicing system
Printed film applicability by marker detection sensor and programing
Ability to control external conveyors via main control panel
Electrostatic sealing for strong continuous sealing
Ability to control additional conveyors by inverters
Quality:
ISO9001 quality standards with the relevant norm's confirmation
CE certifications, complies with the latest CE directives
World-wide approved brands for all mechanical and electrical components
3 year warranty for non-wearable parts against manufacturing defects or faults
Warranty extenable by 1 year increments for additional cost
Wearable parts are not included in warranty terms
1 set of wear parts is provided along with the machine
5 year spare part availability is provided
All Maripak machines and equipment are fabricated to the highest ISO 9001 standards and requirements
Additional Information and Resources
Price:
The machine shown is a base unit with no options or custom additions. Price provided above is for Budgetary reasons only.
Options and or Custom additions can be provided upon request and a custom quote will be provided by our Sales Support Group or an authorized distributor
The Online Prices may be used for general budgetary pricing purposes only and may differ slightly and are subject to change.
Firm pricing necessary to place any order must be confirmed with a formal quotation through the normal Maripak USA - RFQ / quote process along with the proper assignment of an authorized distributor.
Product designations starting with " B "are ( Built-to-Order ) items which are already engineered machines or equipment, but built individually to order.
Videos and Additional Content:
See all the Maripak USA equipment in action in a host of different applications by visiting our
Real production applications running on ever evolving premium industrial shrink equipment that provides ROI
Qualifications:
Qualified for Government Section 179 Tax Deduction machine or equipment purchases and financing
Machine and equipment leasing and financing options are available through Maripak USA's preferred finance partner
This machine will have a lead-time associated with it. One of our machine agents will advise based on the specific model #, options, and or customization of your machine. A specific lead-time will be provided at that time.
The Maripak - WRAPTURE Pro-MOTION Series - Fully-Automatic Continuous Motion Trimless Top Side Sealer is a must have quality built machine. Maripak’s entry into the continuous motion trimless top side sealers are designed for fully-automatic top side seal applications where high speed and rugged reliability are prime considerations.
Built to the same exacting high standards as all of their higher end wrappers, these versatile units are capable of wrapping many pieces. System estimates are approx 98 feet/minute with 110 cycles/minute depending on size and film typewhen combined with the proper infeed. .
The WRAPTURE Pro-MOTION 40 is easy to use and rugged enough for constant and consistent operation when extremely fast and accurate product packaging is a must.
See below for specific specification details and information. Configure and build your own machine with options by request.
