was $49,980.00 Special Price $47,900.00

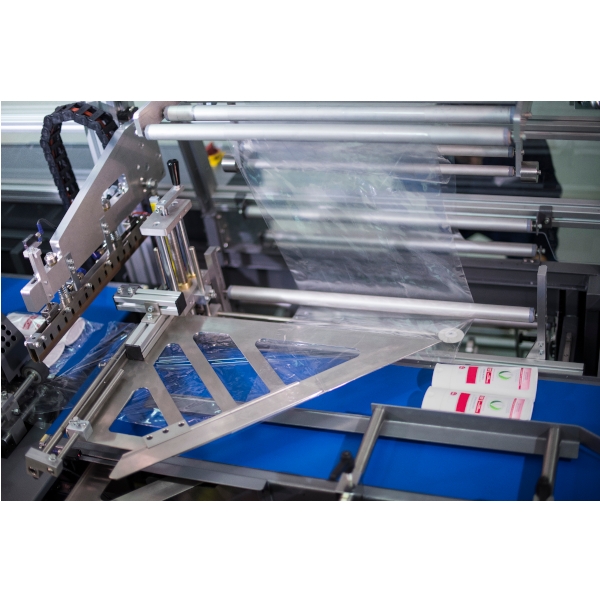

The Maripak - SYMPACK COMPACK Series - Fully Automatic - Continous Side Sealer with Tunnel is a must-have quality built machine for those needing a smaller footprint due to space.

Maripak’s combination sealer and tunnel units are designed for automatic side seal applications where speed, rugged reliability, and a smaller footprint due to space limitations are prime considerations.

Built to the same exacting high standards as all of their higher-end wrappers, these special versatile units are capable of conveyor speeds of up to 98 feet per minute when combined with the proper infeed.

The Sympack's maximum seal bar height opening is a generous 8 inches on this compact unit which allows for a taller than usual product to pass through easily.

The SYMPACK COMPACK 35 is easy to use and rugged enough for constant and consistent operation.

Check out our current inventory here... See Our Live Inventory Feed

Pricing shown below is for a standard base model with no options. Stocked Inventory Equipment Prices may be higher and vary based on the added options / upgrades in each unit.
See below for specific specification details and information. Configure and build your own machine with options by request.

Availability: In stock
SKU
46979

Custom notifications:

Pricing By Request " Get A Quote " for a personalized quote. This model is built to order.

If out of stock, unit can be back-ordered to fill any orders. Unit will be built to order with a lead-time TBD.

SYMPACK 35 - FULLY - AUTOMATIC - SIDE SEALER AND TUNNEL COMBO - MODEL # SYMP35

Maripak’s side seal and tunnel combo line of side sealers are designed for automatic side seal applications where high speed, rugged reliability, and a smaller footprint due to space limitations are prime considerations in a medium to the large-sized user.  Built to the same exacting high standards as all of their higher-end wrappers, these special versatile units are capable of wrapping many pieces. System estimates are approx 98 feet/minute depending on size and film type when combined with the proper infeed.

The SYMPACK COMPACK 35 is easy to use and rugged enough for constant and consistent operation on a daily basis while taking up minimal space.

They come standard with premium features not available on most competitive models in this price range including low-mount film cradle, easy operation controls, touchscreen library to easily recall package setups, and automatic dwell time compensator.

The Maripak’s exclusive Hands-on Design make these units the most user-friendly side sealer packaging unit on the market today. World-Wide approved brands for all mechanical and electrical components make the SYMPACK COMPACT 35 as popular with maintenance staffs as with operators.

When your application calls for a continuous side seal wrapper capable of fully-automatic operation, Maripak’s SYMPACK COMPACK 35 Series offers the lowest total-cost-in-operation available today.

All PARTS are stocked and available for immediate shipment. All technical support, service, and machine and equipment parts are fully supported by our dedicated technical Service Support and Parts fulfillment location in the Greater Tampa FL area.

* Additional SYMPACK Series models are available for various size products, see our other models as well in this SYMPACK COMPACK Equipment Series.

Technical Specifications

  • Maximum Package Size: 13" w x 20" l x 7" h
    - (330x500x180mm)
  • Seal Bar Opening: 8" - (200mm)
  • Maximum Conv. Speed: 98 ft / minute
    - (30 mt / minute) - adjustable
  • Cross Sealer Length: 17" - (420mm)
  • Working Height: 34" - (855mm) - Optional: (+50mm)
  • Conveyor Belt Width (A): 14" - (350mm)
  • Minimum Package Width: 2" - (50mm)
  • Maximum Film Width: 22" - (550mm)
  • Film Types: POF, PE, PVC - 15-60 micron
  • Maximum Roll Diameter: 11" - (270mm) - standard
  • Color: Customized - Light Gray
    RAL7015 + RAL7010
  • Compressed Air Supply: No - None with standard unit
  • Working Principle: Servo Driven
  • Installed Power: 220-240 Volt 3 Phase
  • Consumption (Max / Average): 14 kW / 9 kW
  • Dimensions (AxBxC): 59 x 110 x 61"
    - (1500 x 2800 x 1550mm)
  • Palletized Size (AxBxC) :67 x 118 x 69"
    - (1700 x 3000 x 1750mm)
  • Weight (Net / Gross): 1521 lbs / 1786 lbs
    - (690 kg / 810 kg)

* For DIN A4 form and SYMPACK COMPACK 35 Series servo real working speed depends on the product dimensions and film type.

Advantages:

  • Very compact and new esthetic " Pro " design
  • Minimized layout requirement due to this new "Pro" design
  • Continuous side sealer provides unlimited length packaging ability
  • Very fast and flawless sealing property by Servo Drive Vertical Sealer
  • Optimum automatic solution for above-average capacity processes
  • Easy to integrate with any production line directly
  • Recordable and re-call package parameter settings
  • Easy to use, compatible with health and safety standards

Features:

  • Automatic length detection by sensor synchronized with encoder control
  • User-friendly ergonomic color touch screen operation panel
  • Automatic packaging film drive with tension control
  • Automatic trim winder with tension control
  • Feeding frequency control by sensor detection and PLC control
  • An automatic post-cooling mechanism for cooling down to - 158 degrees F / 70 degrees C before switch off
  • Additional emergency temperature control system against fire risk
  • Ability to read instant (or total) realized throughput capacity by counter
  • Strong needle-wheel frame structure for air discharge perforation
  • Reduced energy consumption and increased aesthetic look due to Diamond design
  • Adjustable speed control of tunnel conveyor for the optimized heat application period
  • Heat adjustment regulated with digital PID control
  • Tunnel air circulation control by way of side flap handles
  • Easily transportable inside a facility

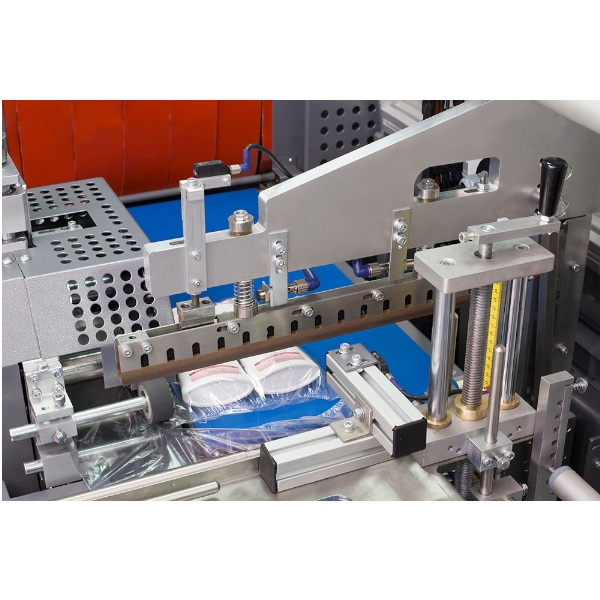

Sealing:

  • Center-Seal property provides an accurate and linear sealing line
  • Adjustable precision and pressure on cutting and sealing force
  • PID controlled sealing temperature inserted by the touch panel
  • Alternative sealing blade structures for various packaging materials
  • Product clearance control under seal bar by a sensor

Flexibility:

  • Easily adjustable for varying product sizes and capacity needs
  • Various language options and adaptable touch keyboard
  • Memory Receipt property for prompt adjustments
  • Perfect sealing blade design compatible with varying thicknesses
  • User-friendly designed trim-winder for easy and prompt trim unloading
  • Less layout space requirement by embedded easy-to-open film drawer

Optional:

  • Solenoid actuator for side sealer: - No compressed air requirements
  • Ability to work without compressed air requirements
  • Ability to control additional conveyors by inverters
  • Chain lift-up system to easily switch between PE / POF film material
  • Tunnel conveyor alternatives: Wire Mesh, Teflon Mesh, or Plastic Mesh
  • Upgrade Available by Request - Heat-Proof Plastic Modular Belt - Plus - $1,520.00

Quality:

  • ISO9001 quality standards with the relevant norm's confirmation
  • CE certifications comply with the latest CE directives
  • World-wide approved brands for all mechanical and electrical components
  • 3-year warranty for non-wearable parts against manufacturing defects or faults
  • Warranty extendable by 1-year increments for an additional cost
  • Wearable parts are not included in warranty terms
  • 1 set of wear parts is provided along with the machine
  • 5-year spare part availability is provided






All Maripak machines and equipment are fabricated to the highest ISO 9001 standards and requirements

Additional Information and Resources


Price:

  • The machine shown is a base unit with no options or custom additions. Price provided above is for Budgetary reasons only.
  • Options and or Custom additions can be provided upon request and a custom quote will be provided by our Sales Support Group or an authorized distributor
  • The Online Prices may be used for general budgetary pricing purposes only and may differ slightly and are subject to change.
  • Firm pricing necessary to place any order must be confirmed with a formal quotation through the normal Maripak USA - RFQ / quote process along with the proper assignment of an authorized distributor.
  • Product designations starting with " B " are ( Built-to-Order ) items which are already engineered machines or equipment but built individually to order.


Videos and Additional Content:

    • See all the Maripak USA equipment in action in a host of different applications by visiting our







    • Real production applications running on ever-evolving premium industrial shrink equipment that provides ROI


Qualifications:

    • Qualified for Government Section 179 Tax Deduction machine or equipment purchases and financing
    • Machine and equipment leasing and financing options are available through Maripak USA's preferred finance partner


Check the available Finance Options

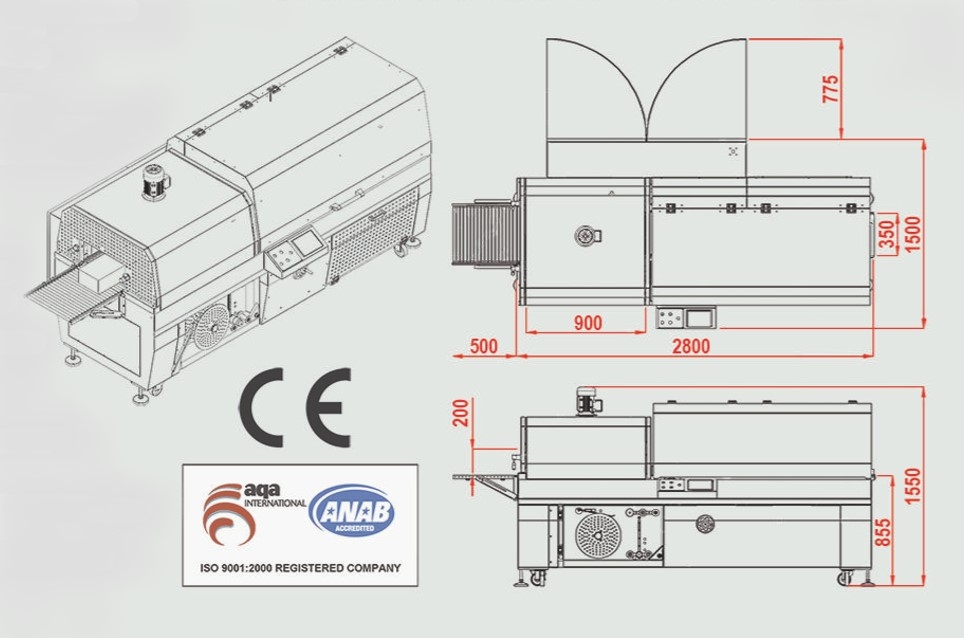

Drawings and Dimensions:


    Custom notifications:

    This machine will have a lead-time associated with it. One of our machine agents will advise based on the specific model #, options, and or customization of your machine. A specific lead-time will be provided at that time.

    " Request A Quote " for a personalized e-quote...... Ask about special pricing.

    More Information
    SKU 46979
    Short Description

    The Maripak - SYMPACK COMPACK Series - Fully Automatic - Continous Side Sealer with Tunnel is a must-have quality built machine for those needing a smaller footprint due to space.

    Maripak’s combination sealer and tunnel units are designed for automatic side seal applications where speed, rugged reliability, and a smaller footprint due to space limitations are prime considerations.

    Built to the same exacting high standards as all of their higher-end wrappers, these special versatile units are capable of conveyor speeds of up to 98 feet per minute when combined with the proper infeed.

    The Sympack's maximum seal bar height opening is a generous 8 inches on this compact unit which allows for a taller than usual product to pass through easily.

    The SYMPACK COMPACK 35 is easy to use and rugged enough for constant and consistent operation.

    Check out our current inventory here... See Our Live Inventory Feed

    Pricing shown below is for a standard base model with no options. Stocked Inventory Equipment Prices may be higher and vary based on the added options / upgrades in each unit.
    See below for specific specification details and information. Configure and build your own machine with options by request.

    Custom note

    Pricing By Request " Get A Quote " for a personalized quote. This model is built to order.

    Additional Info This machine ships direct from the Greater Tampa Florida area and will be PLUS FREIGHT. Freight will be quoted and depend on delivery zip code.

    *** Special Custom Creating will be made to ensure safe and secure shipment of the machine and will be an added to the final cost of the machine as each machine's crating is different. ***
    Manufacturer Maripak
    Manufacturer's SKU MAR-SYMP35
    Manufacturer's Model Number SYMP35
    Manufacturer Category Continuous Side Sealers Shrink Equipment
    Unit of Measure each

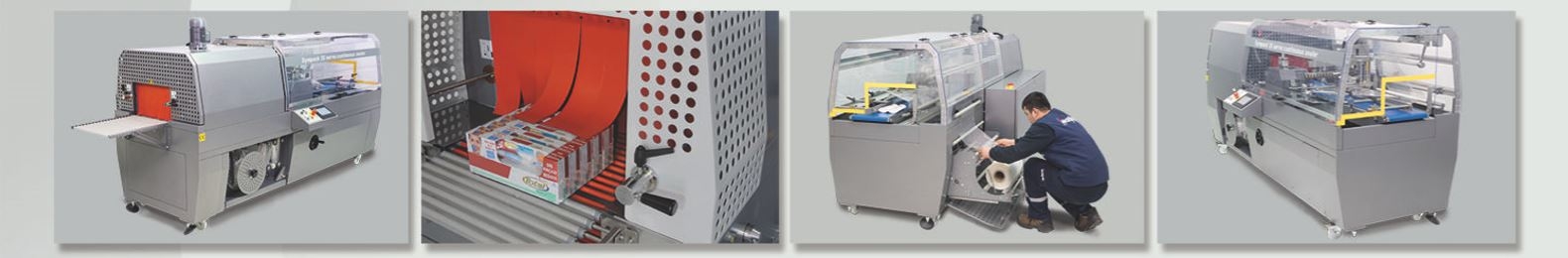

    REAL PACKAGING APPLICATIONS IN ACTION
